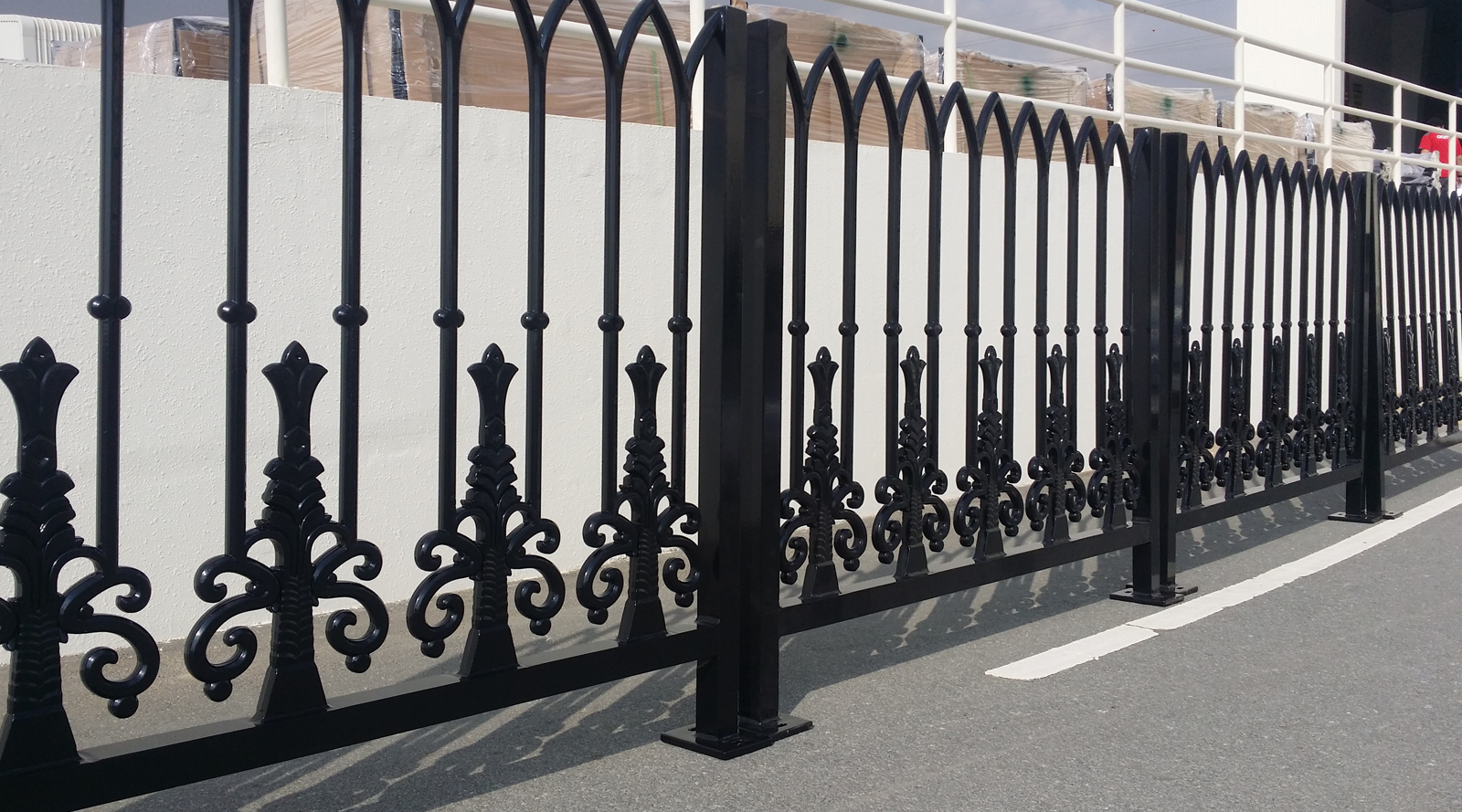

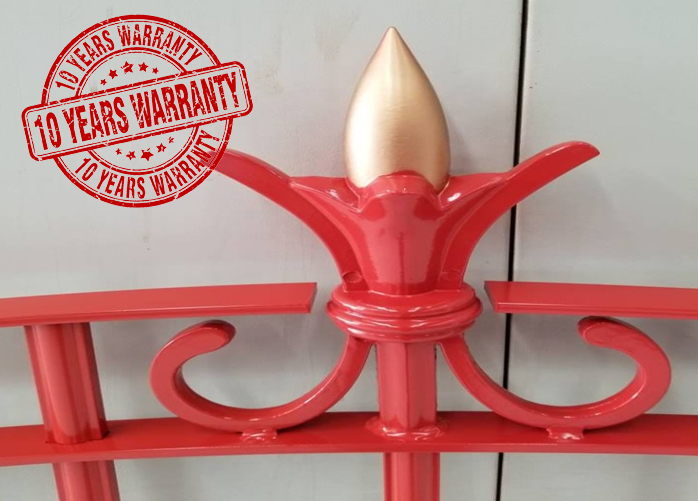

Royal

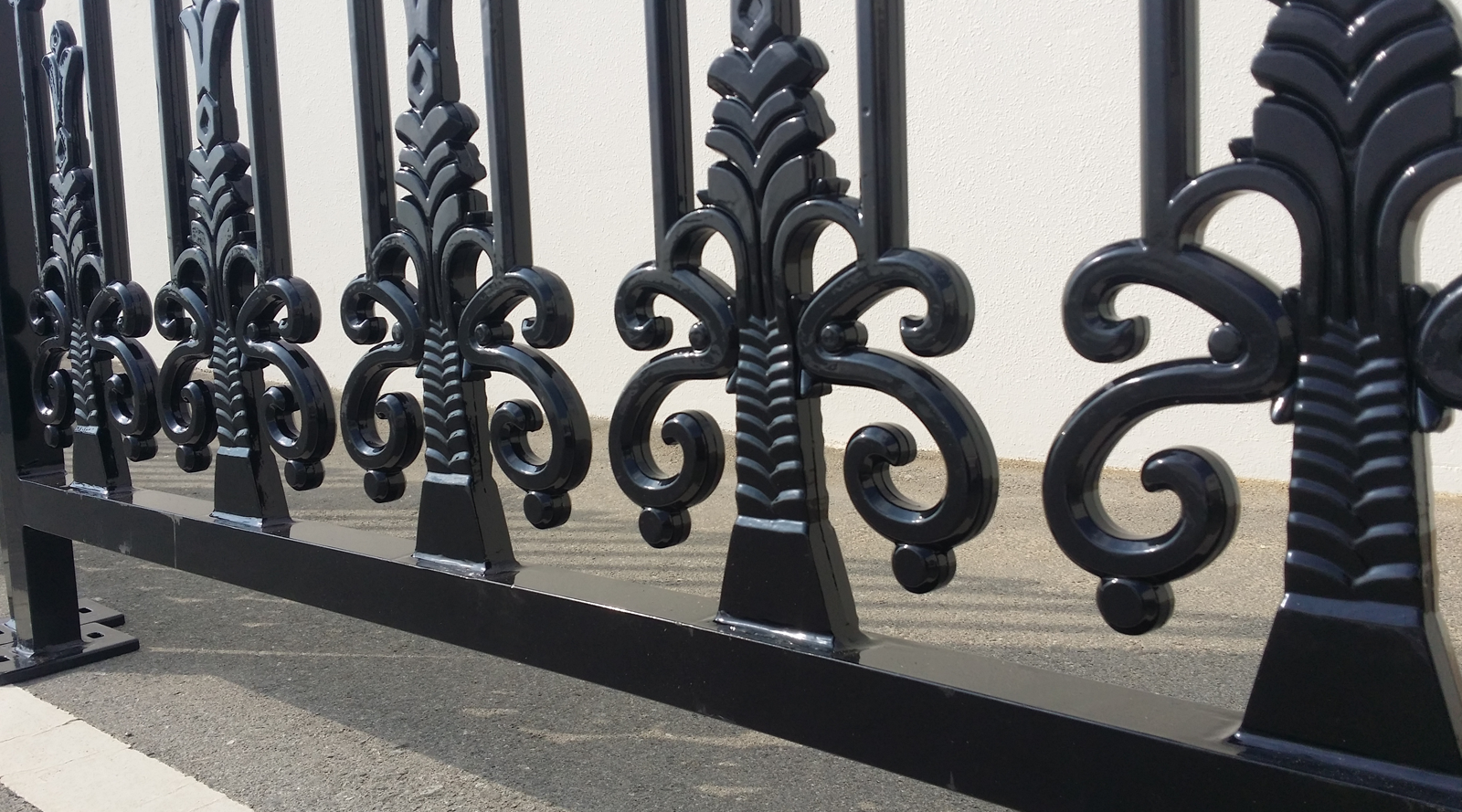

Royal Pedestrian Panel cast Aluminum :

• Width: 1560 mm Height: 1200 mm

• Post:50x50x3.0mm With Base Plate Other shape

• Aluminum & powder coated two faces powder coated ( Black, Khaki, Gray )

• 10 Years warranty

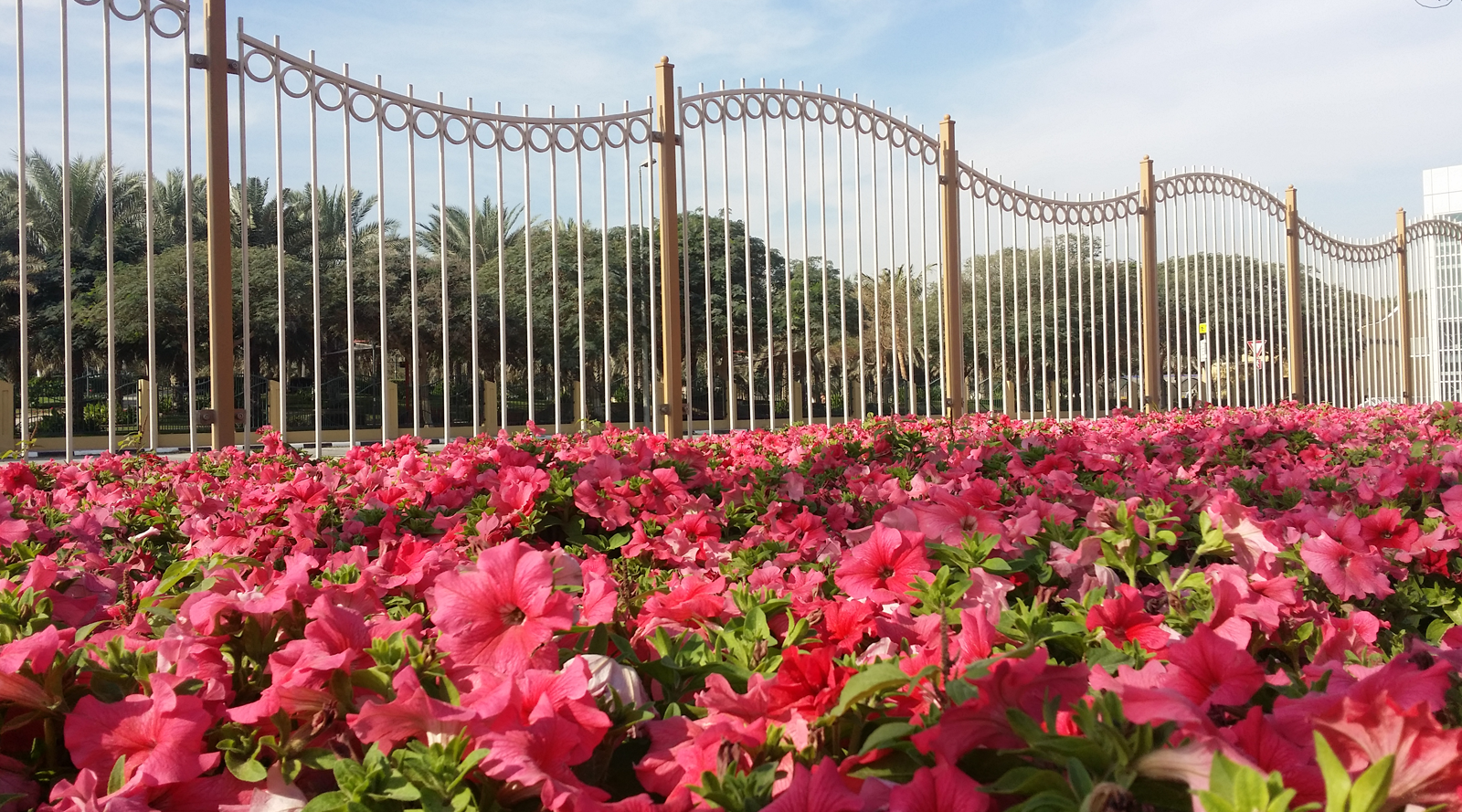

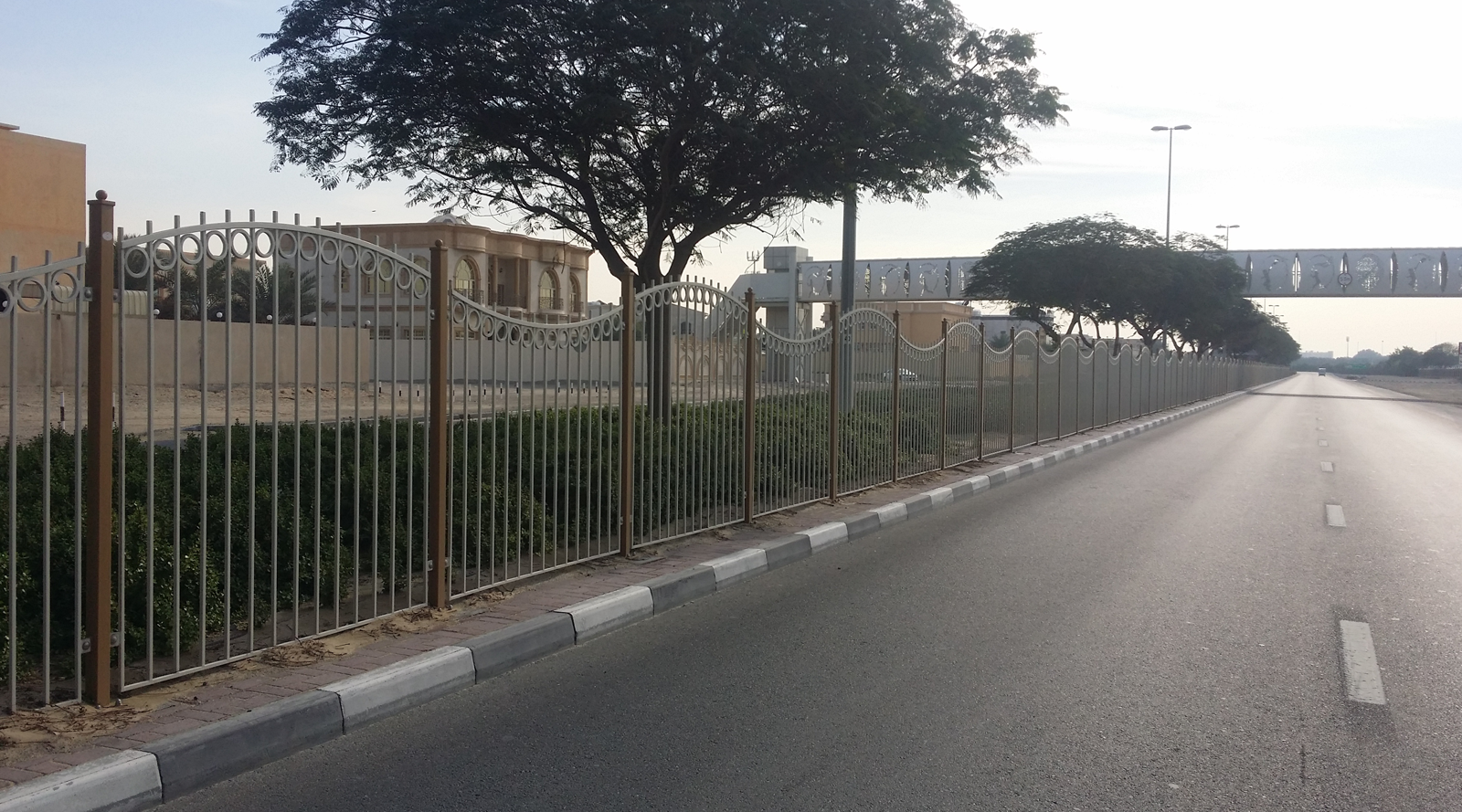

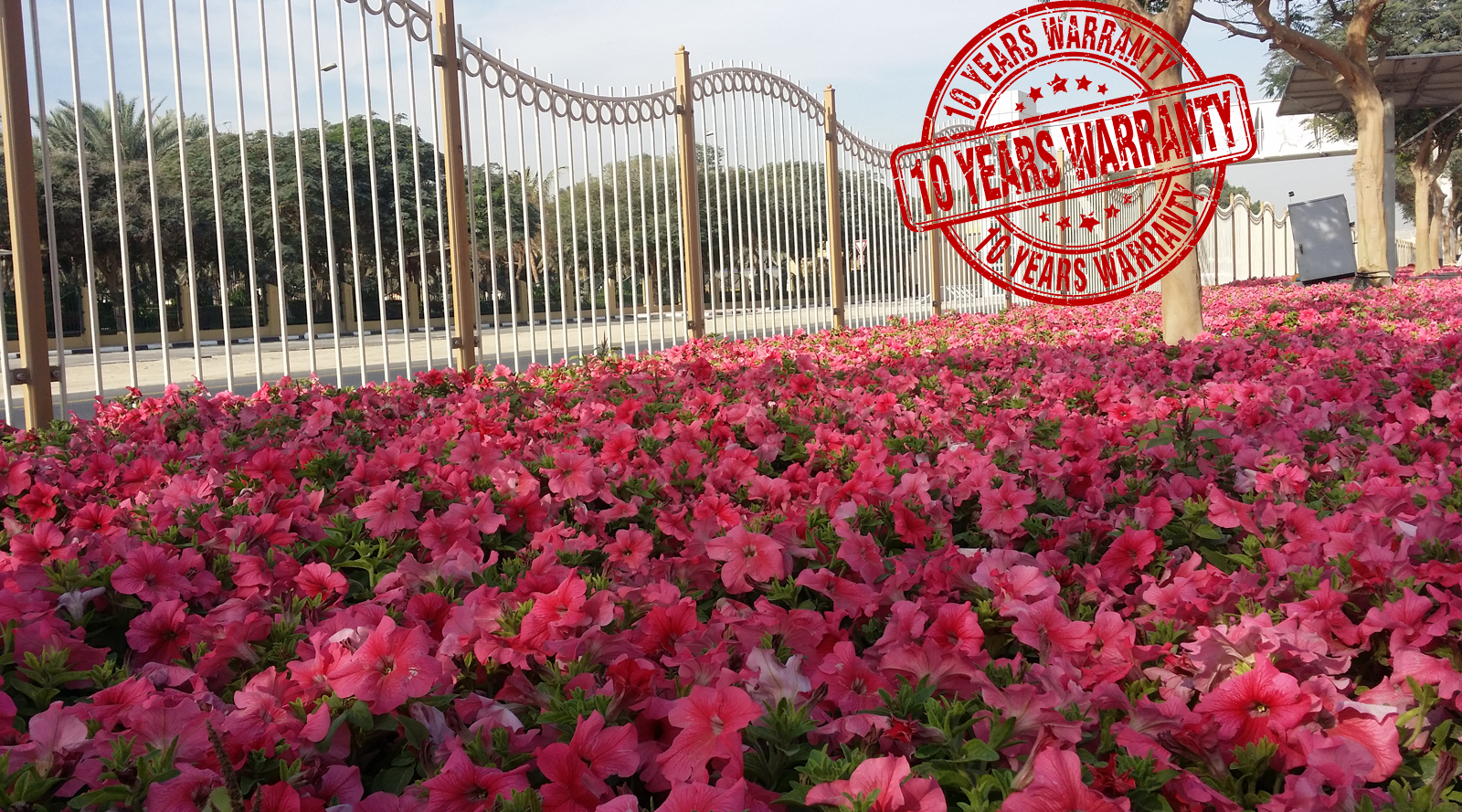

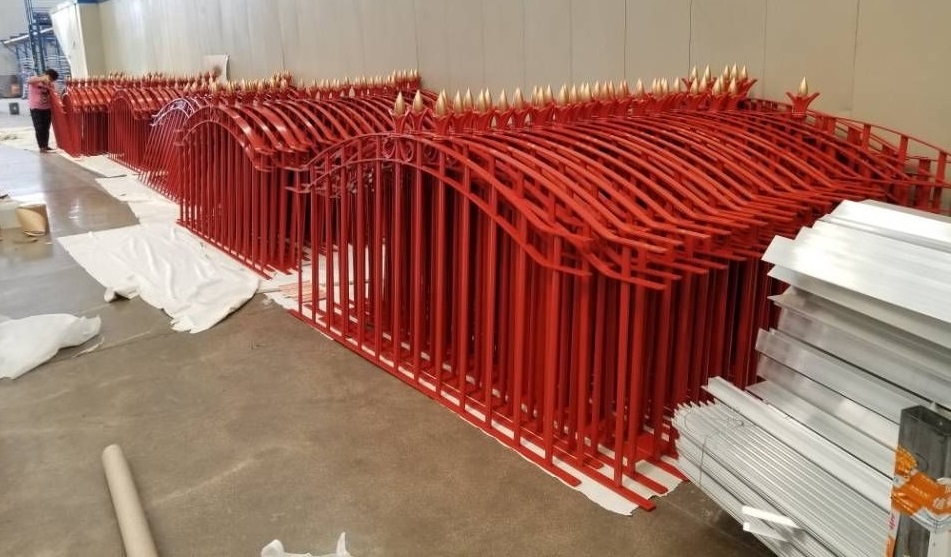

Curved

specifications :

Panel :

• Width:2000mm

• The maximal Height:184mm ( high wave )

• The minimal Height:154mm ( low wave )

• Picket:16×16mm x 15 pcs

• Rails:30×3.0×2000mm ×2

• Picket and Rail connection: welding

• Material Aluminum

• two faces powder coated ( Black, Khaki, Gray )

• 10 Years warranty

Post :

• Size:60x60x2.0mm

• Height 190cm Or any as request

• Base and sets of screws and top ball

• Aluminum

• Two faces Powder coated ( Black, Green, Gray )

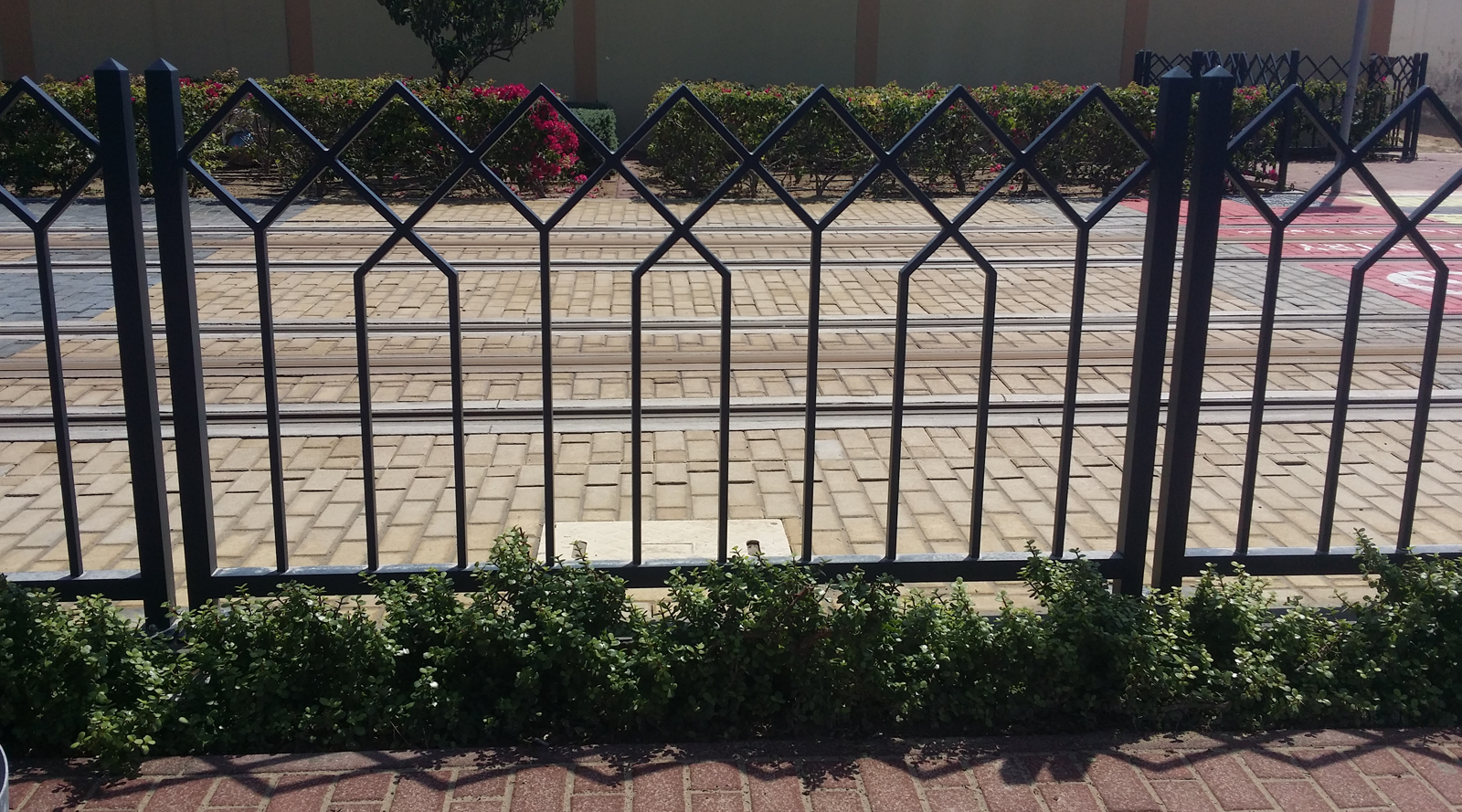

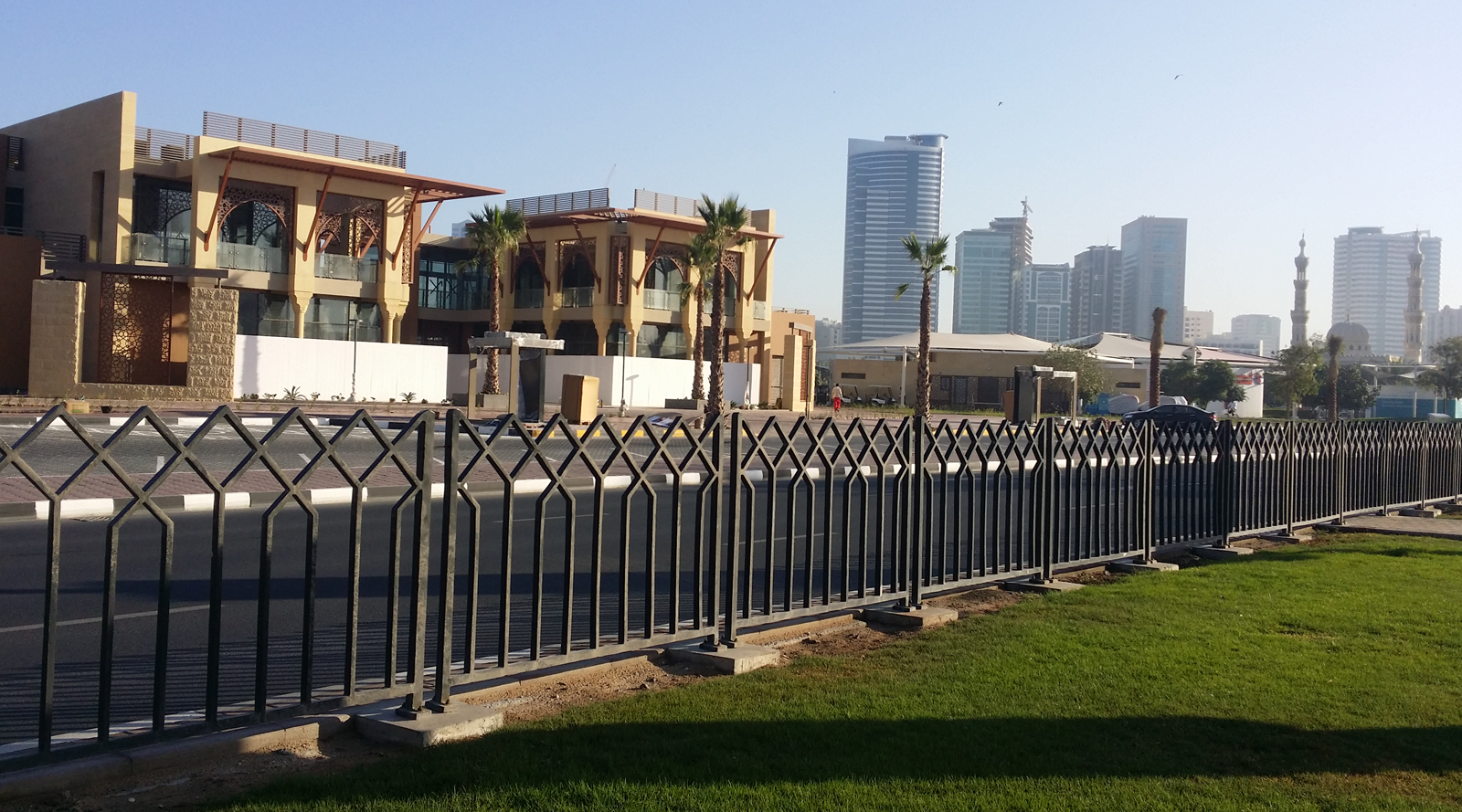

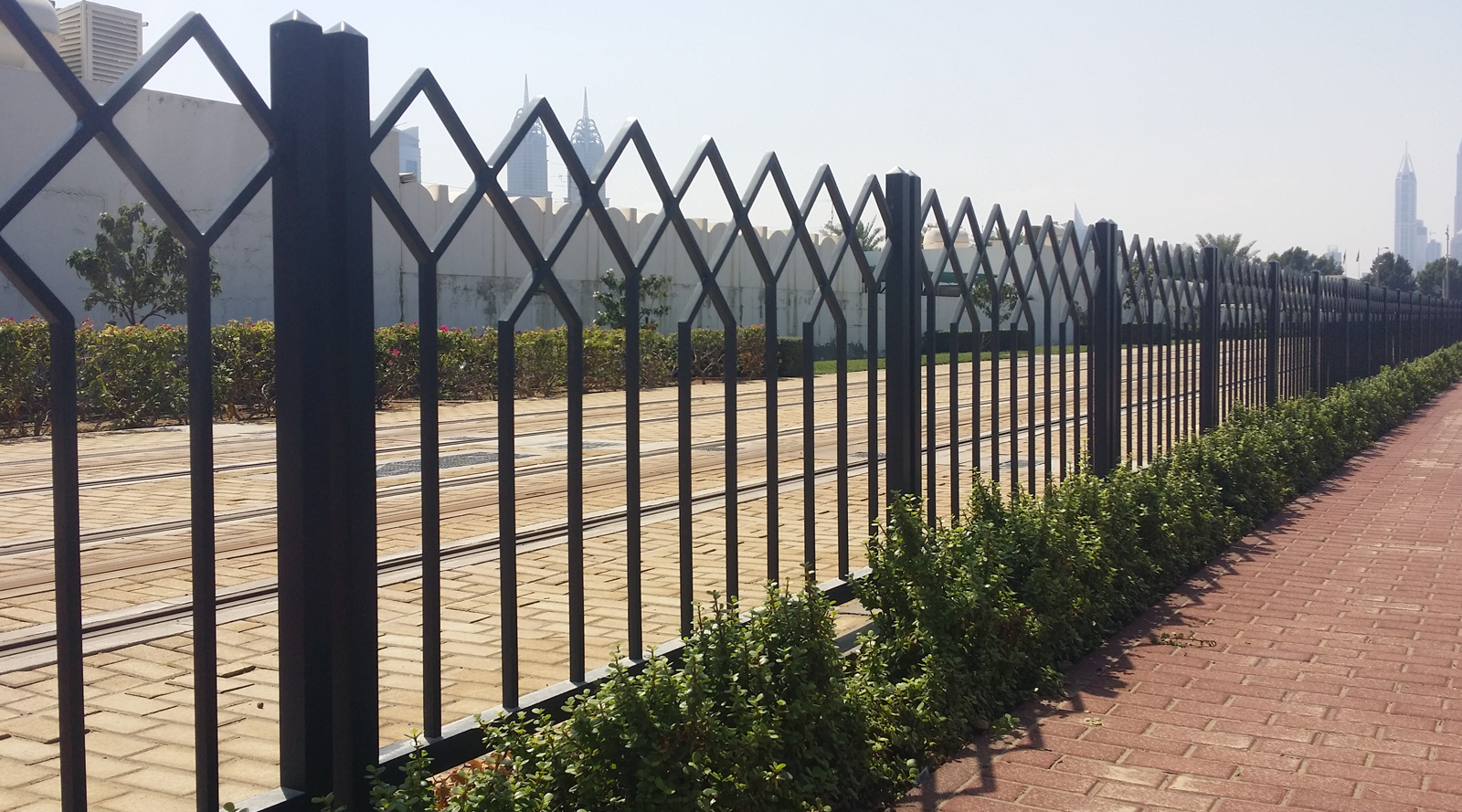

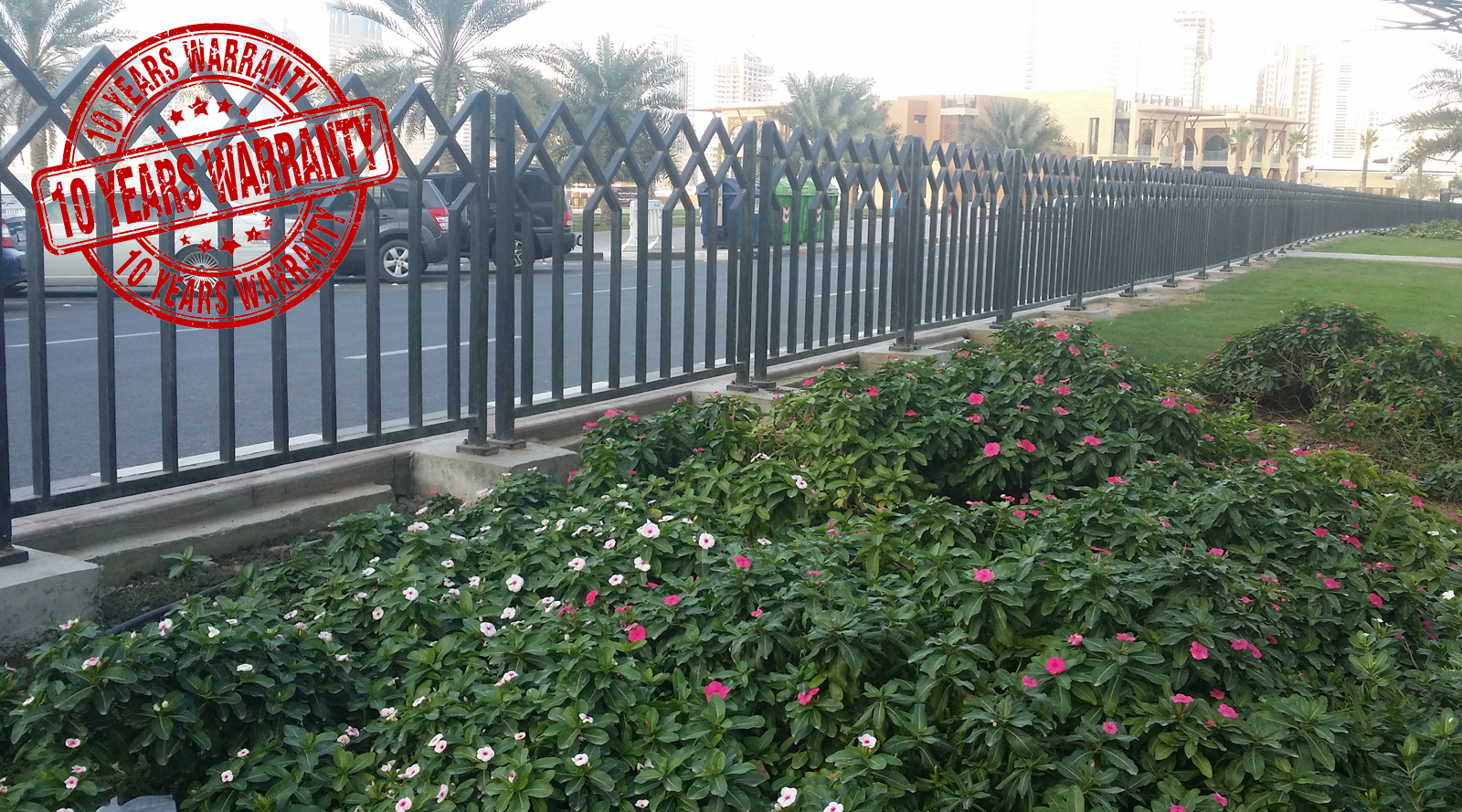

Lozenge

Squire solid panels :

• Size: 1200mm high x 2105mm width

• Solid bar size : 20*20mm

• Post size 50*50*3.0mm

• Base plate :80*150*20mm

• Powder coated 2 faces ( Black, Khaki, Gray )

• Aluminum

• 10 Years warranty

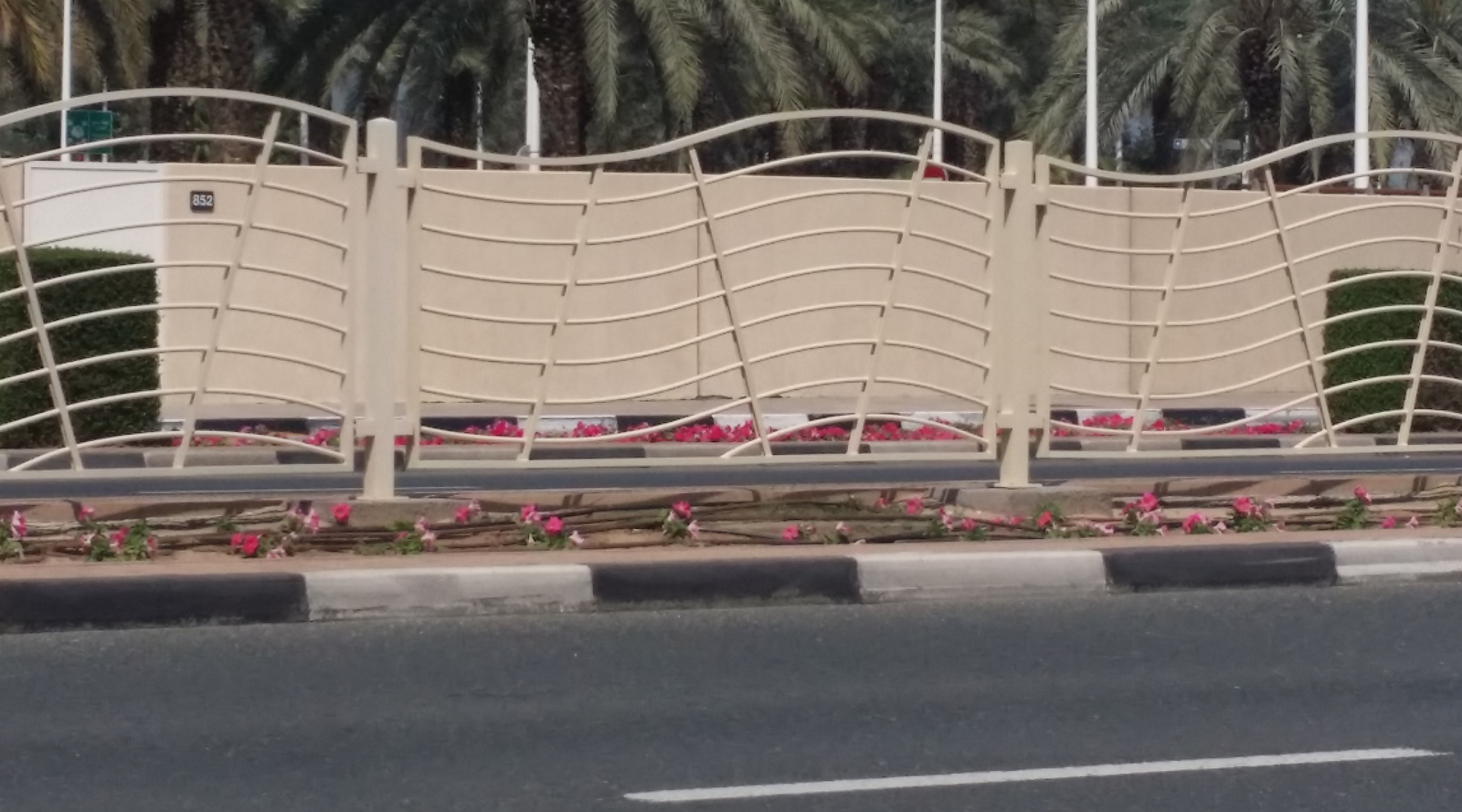

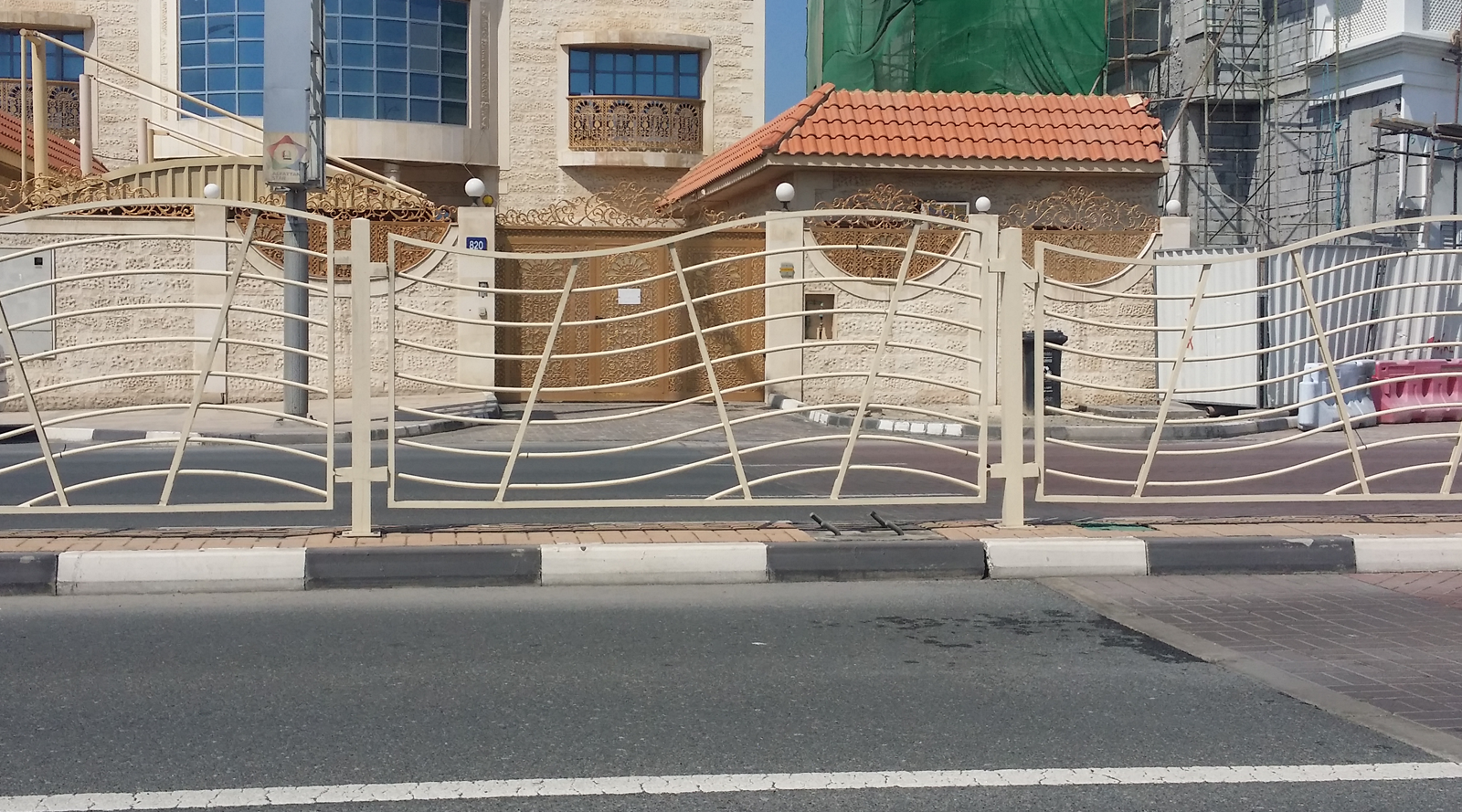

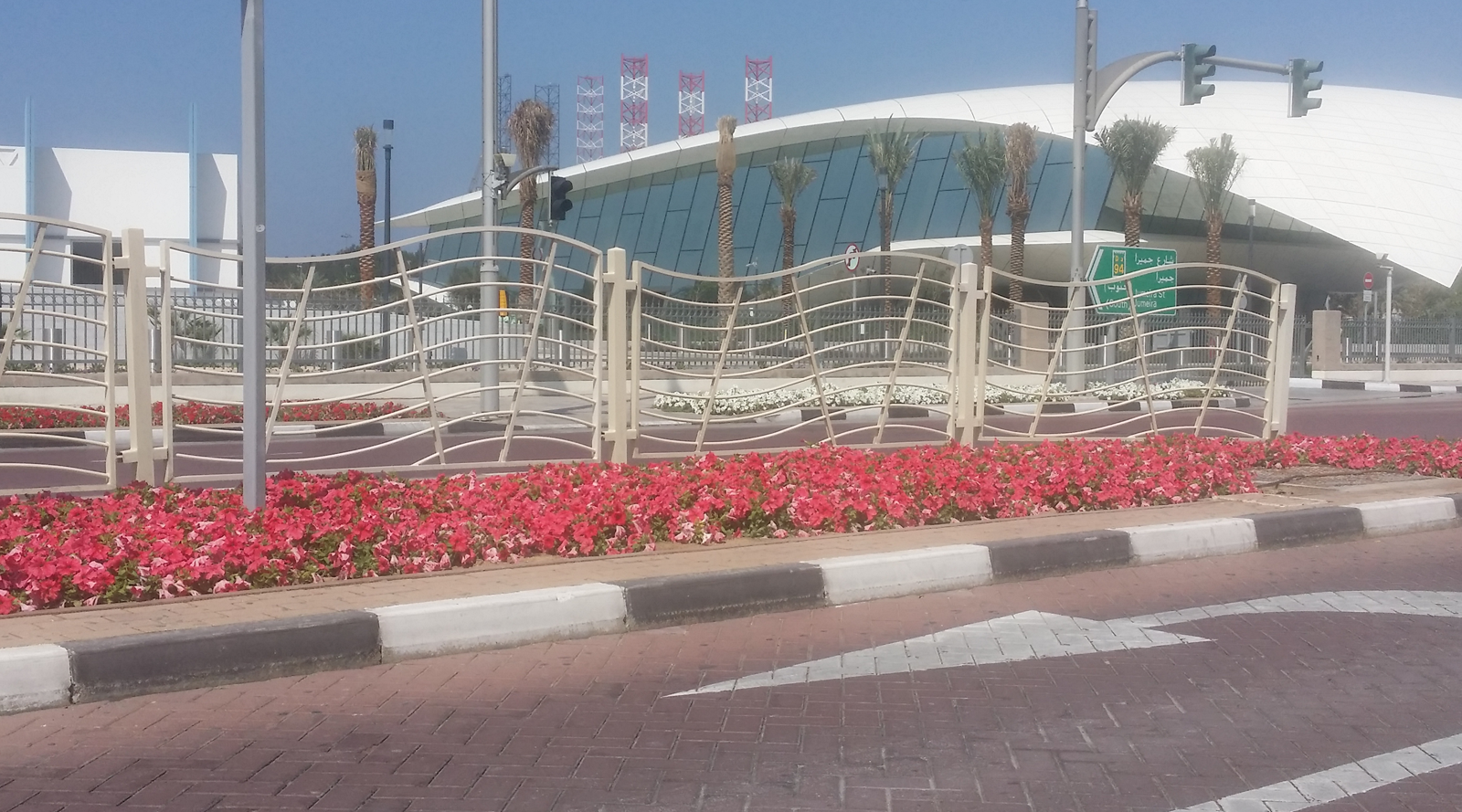

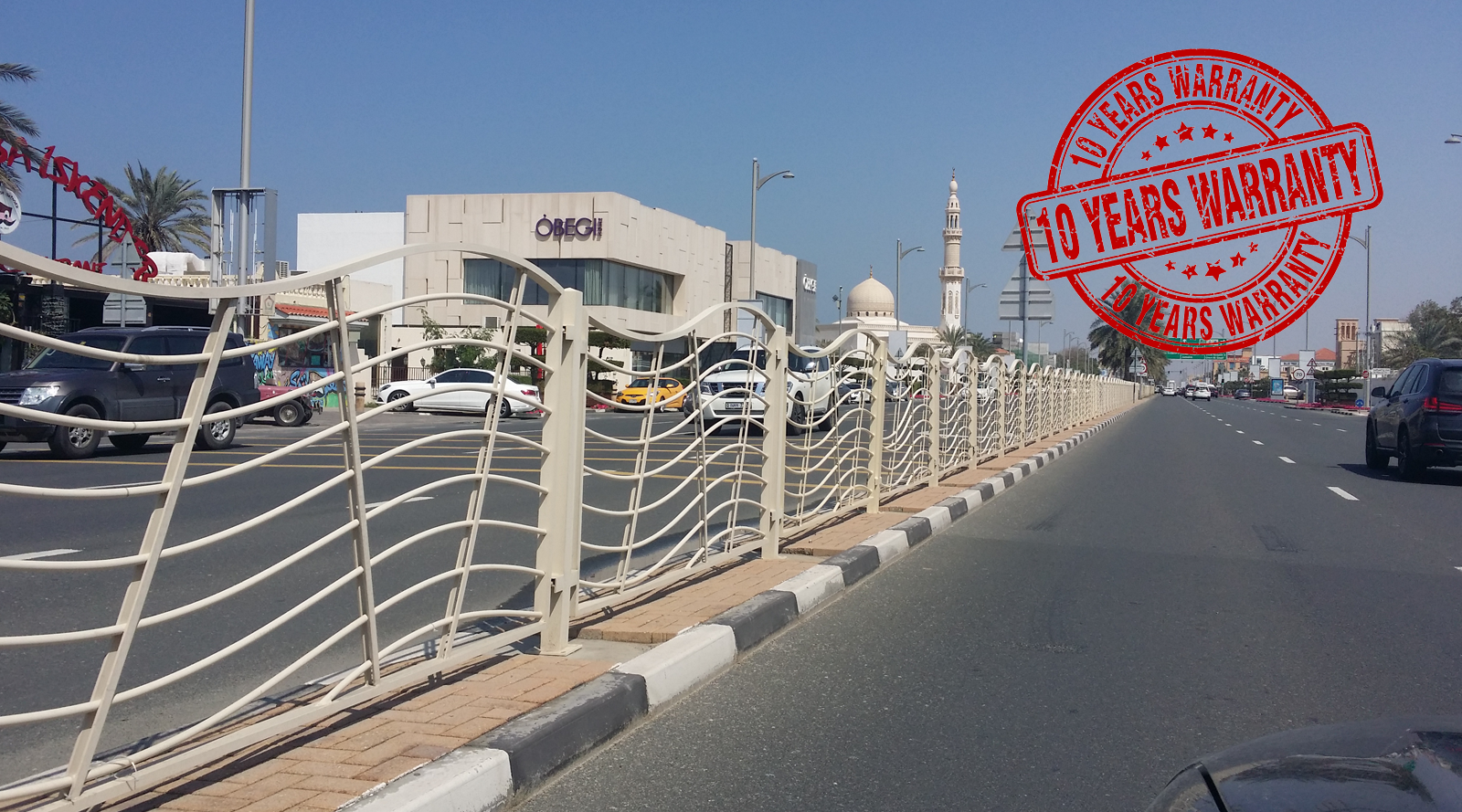

WAVE

Panel:

• Size : Height 1285mm x 2850mm Width

• Horizontal bar: solid

• Frame: hollow aluminum pipe 25*50*2.0mm Middle vertical Double flat bar:25x6mm

• two faces powder coated ( Black, Khaki, Gray )

• 10 Years warranty

Panel:

• Size : 75*75*3.0mm

• Height:1300mm

• base plate 150x150x10mm

• Aluminum 2mm Thickness

• two faces powder coated

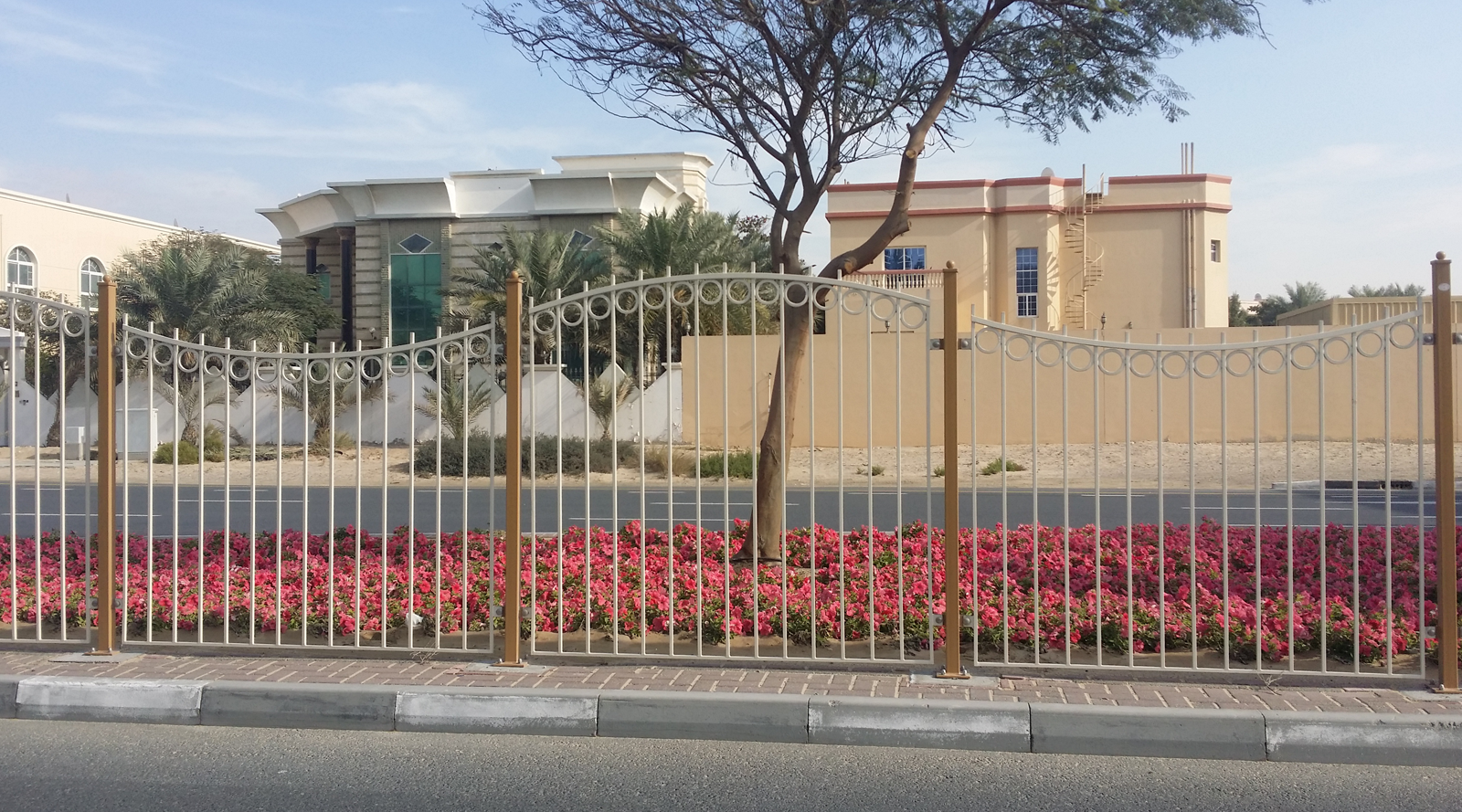

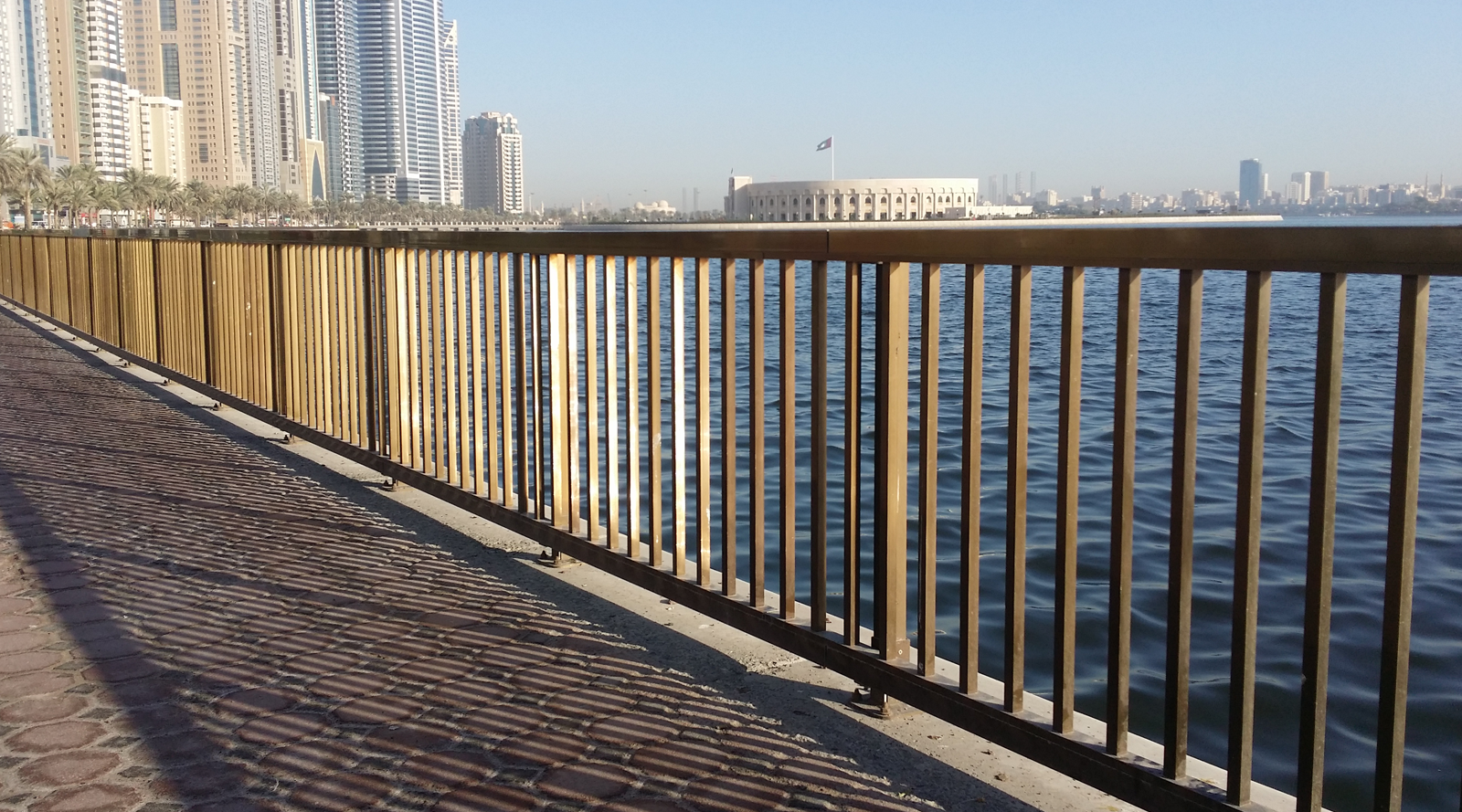

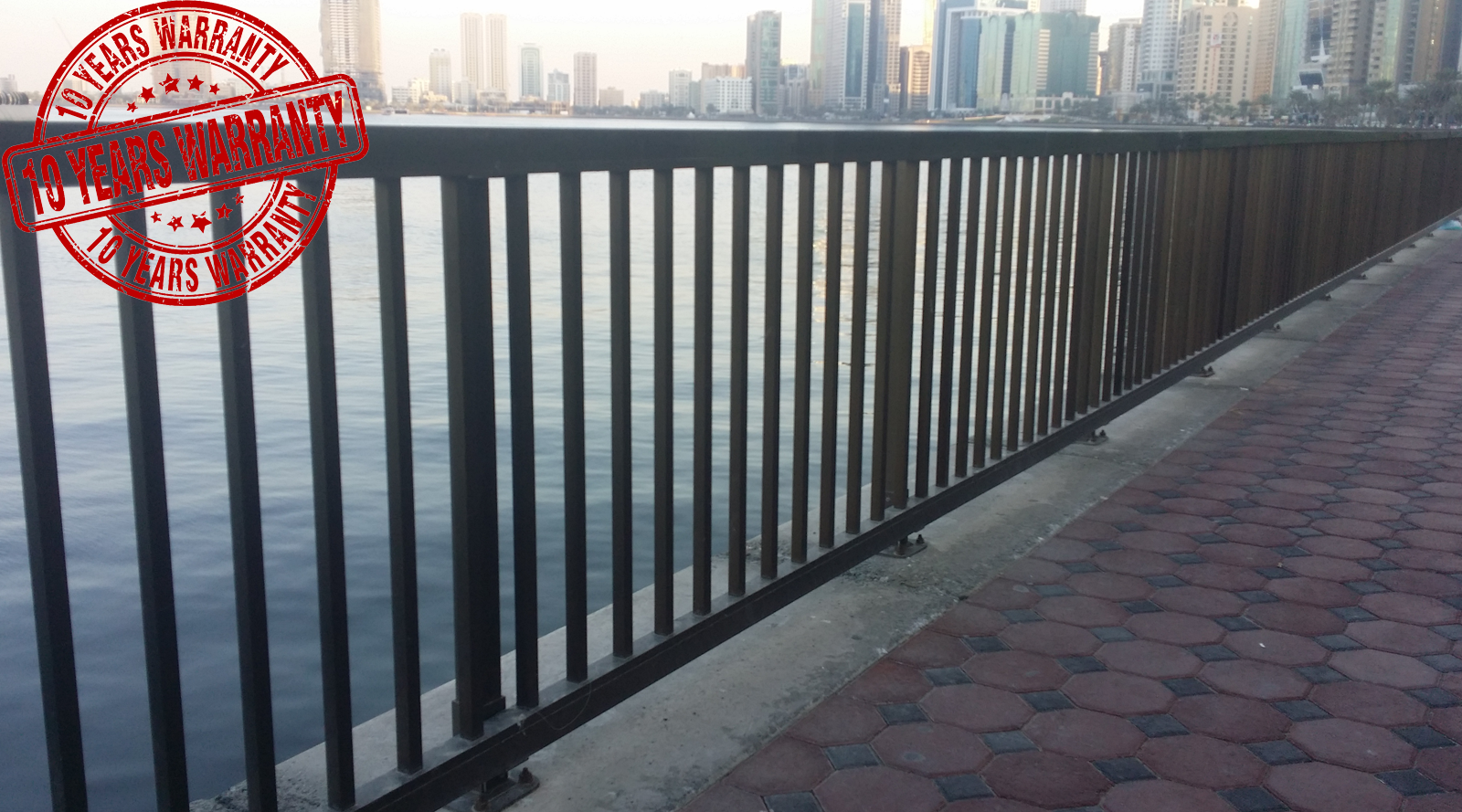

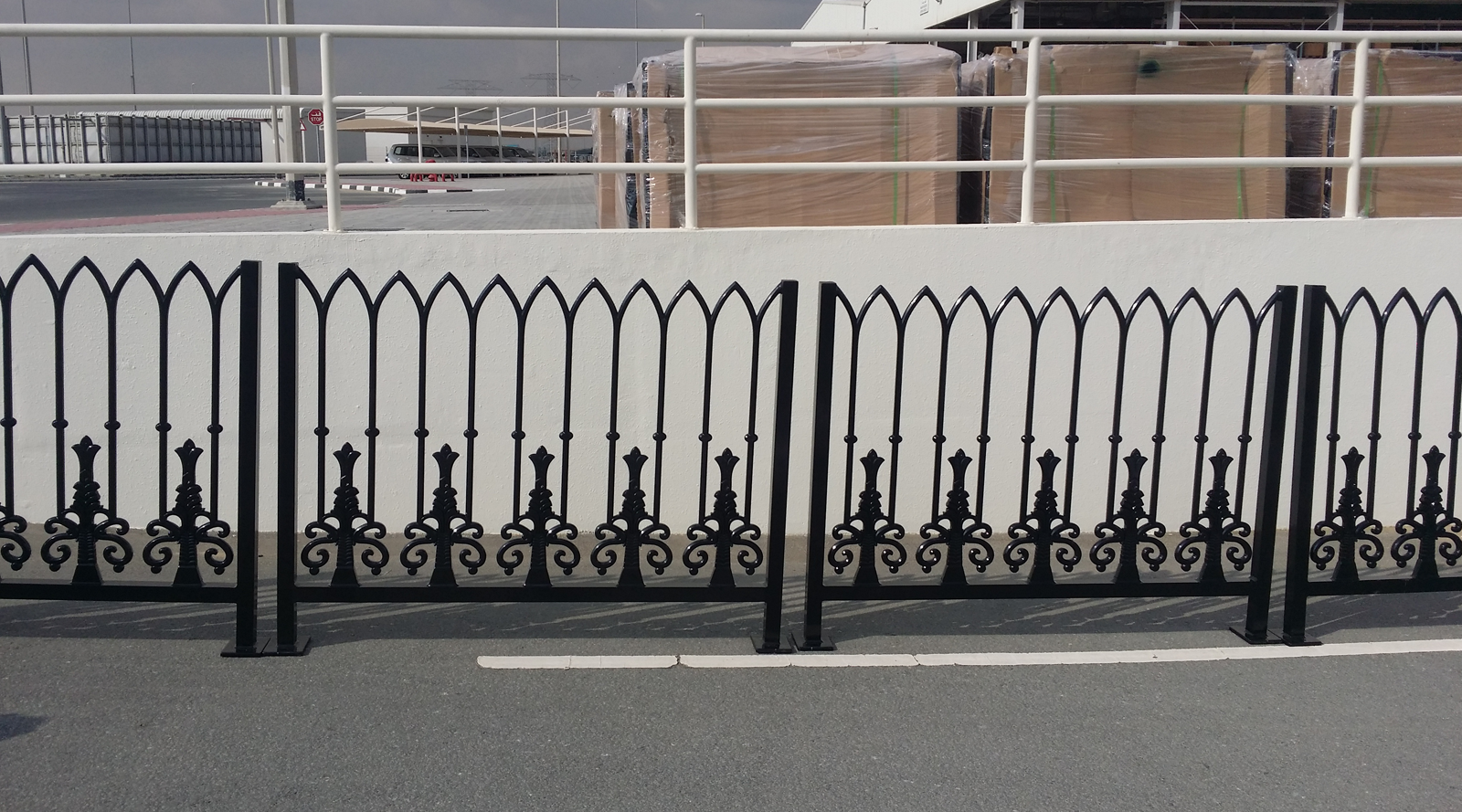

Classic

it says it all. Classic style is a timeless look. Available for immediate Quick order with all sizes

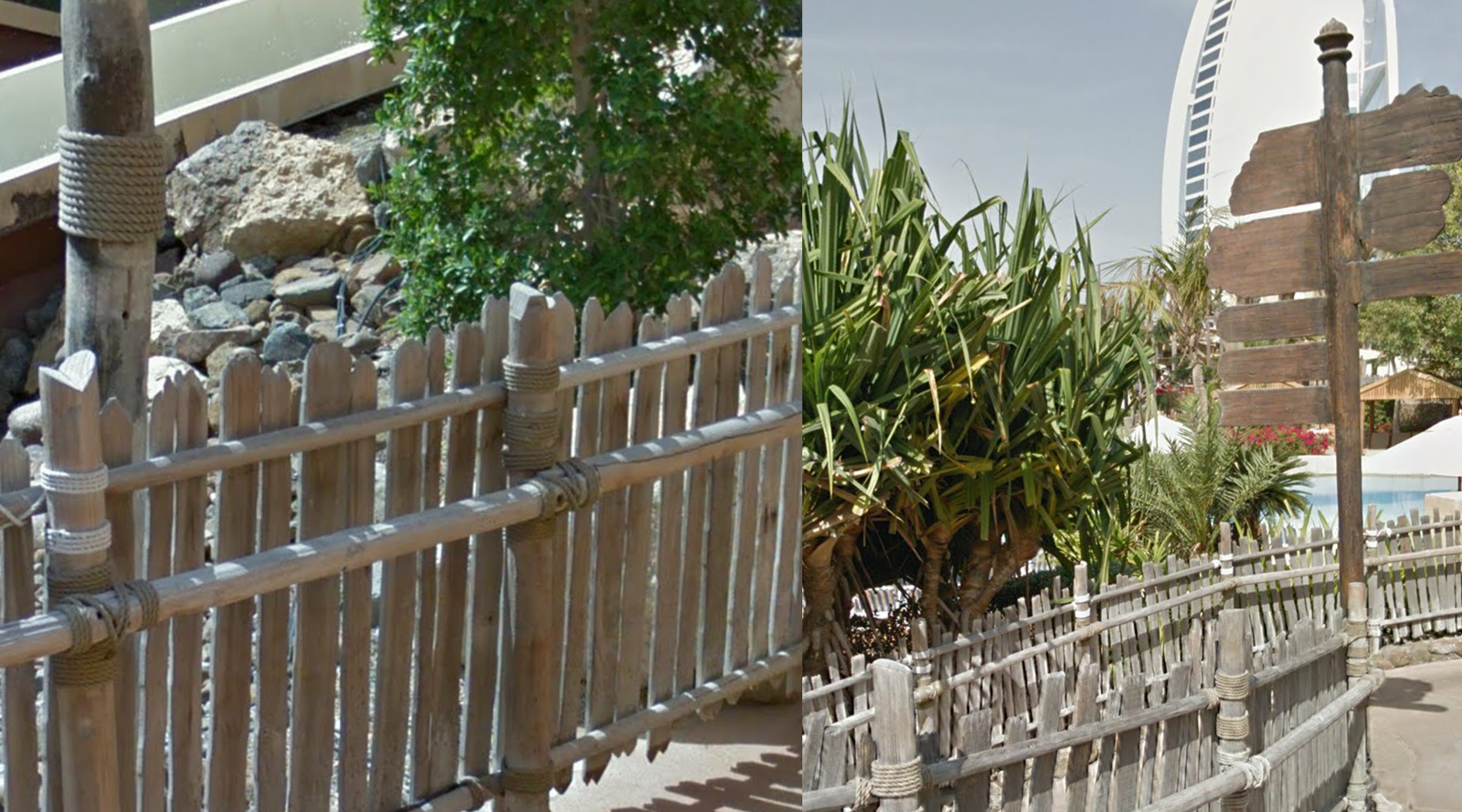

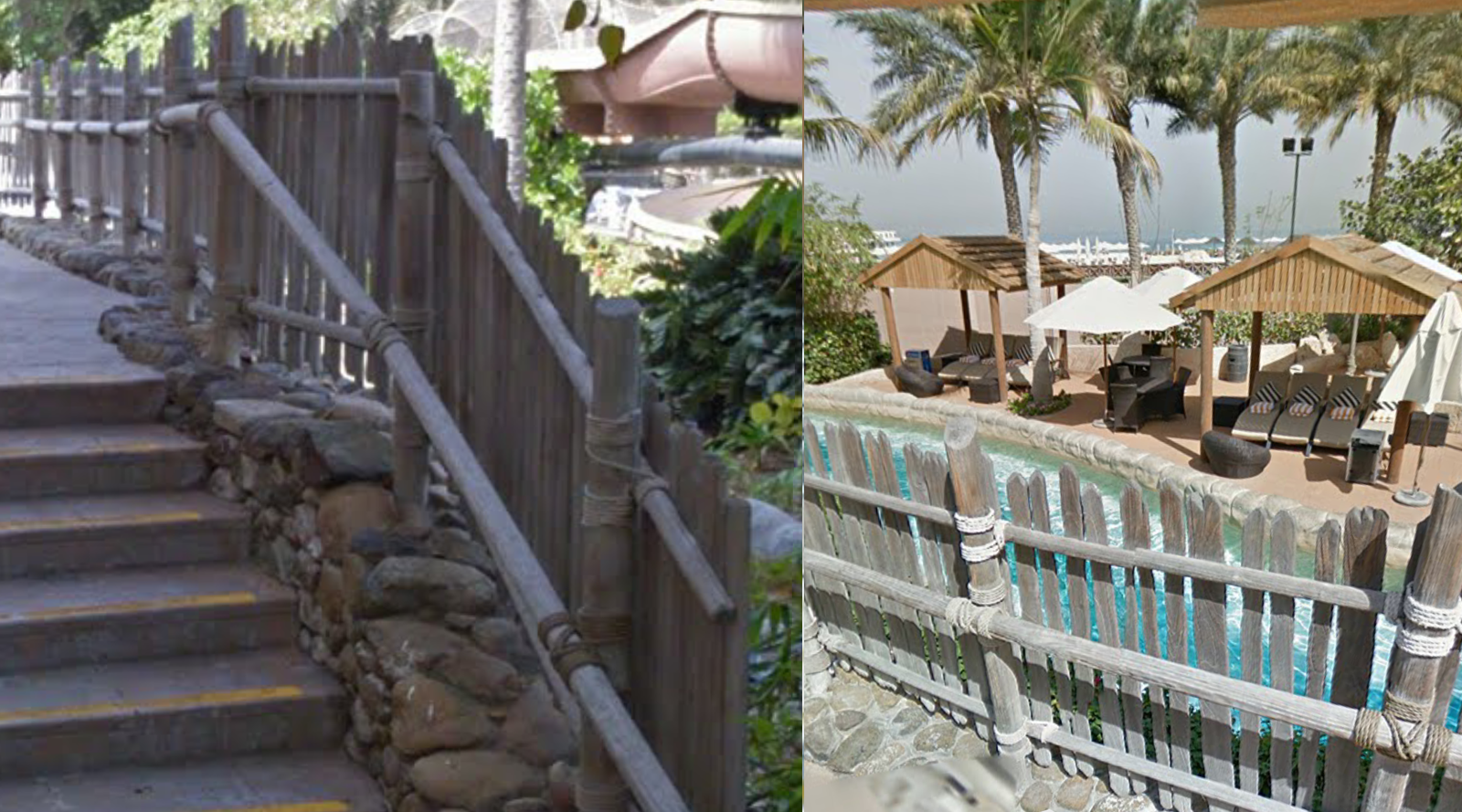

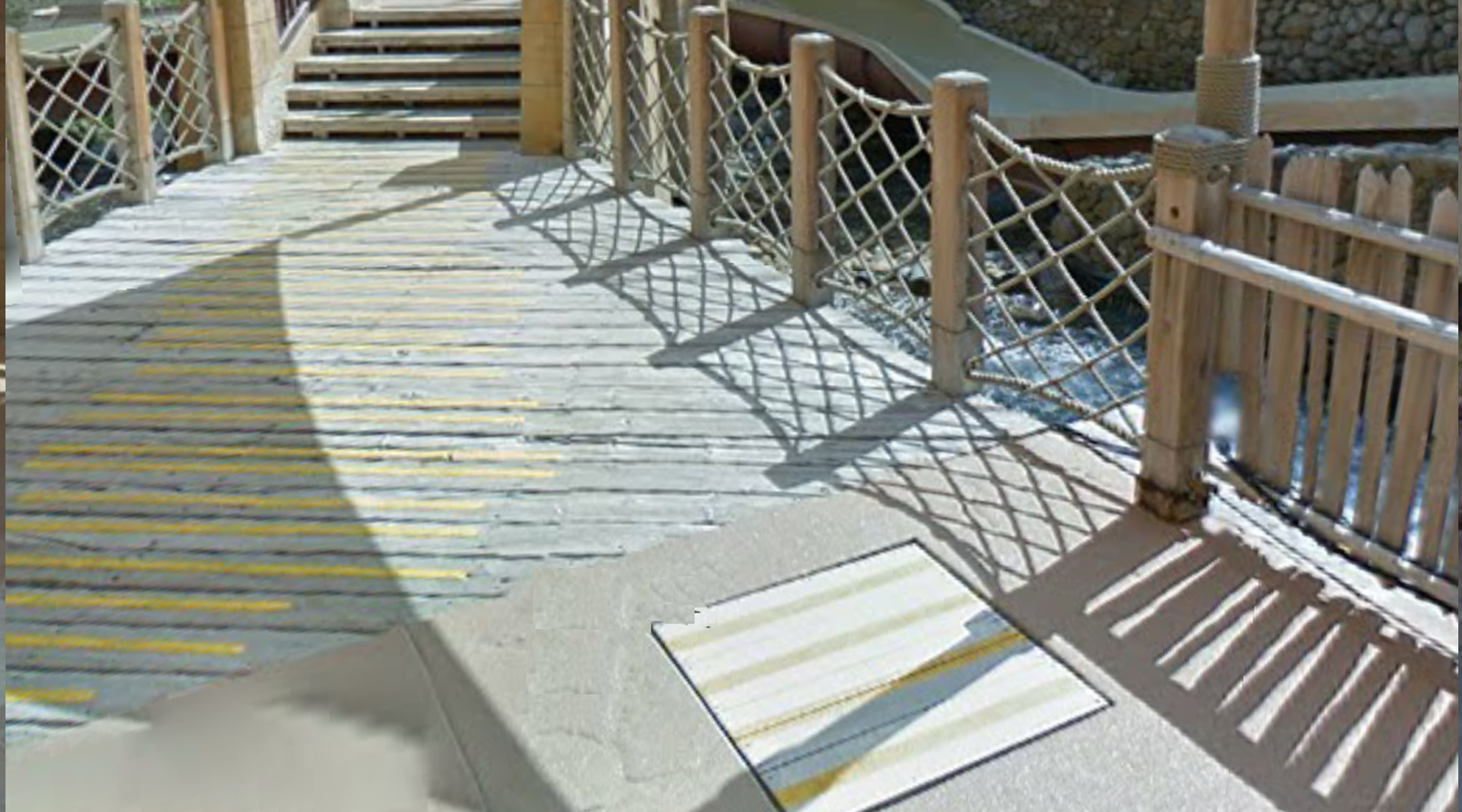

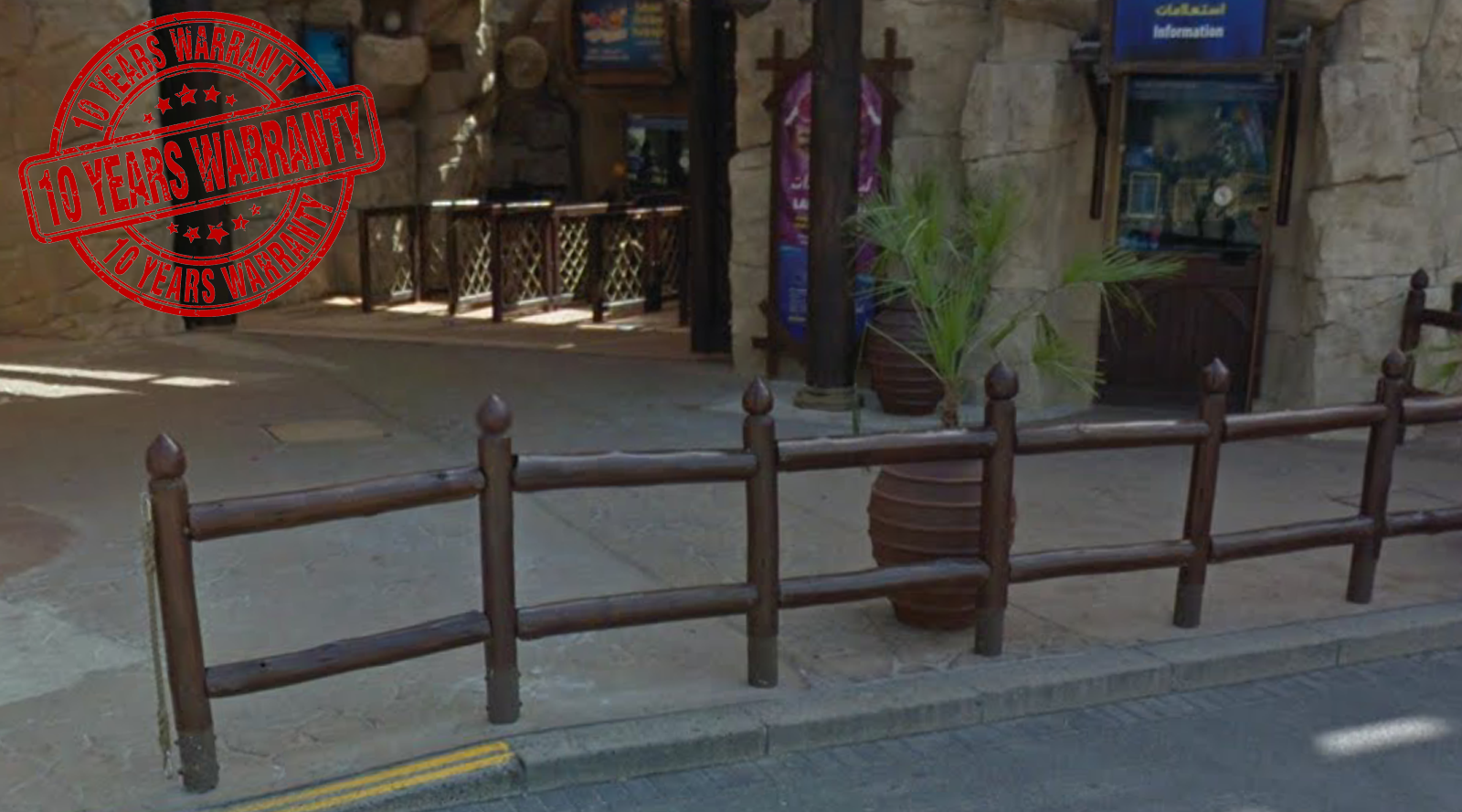

Aged

Wood Fence Style offerings include rustic rail, spaced picket, and privacy styles. We also carry special design for VIP customers. Special fence orders and custom orders accepted.

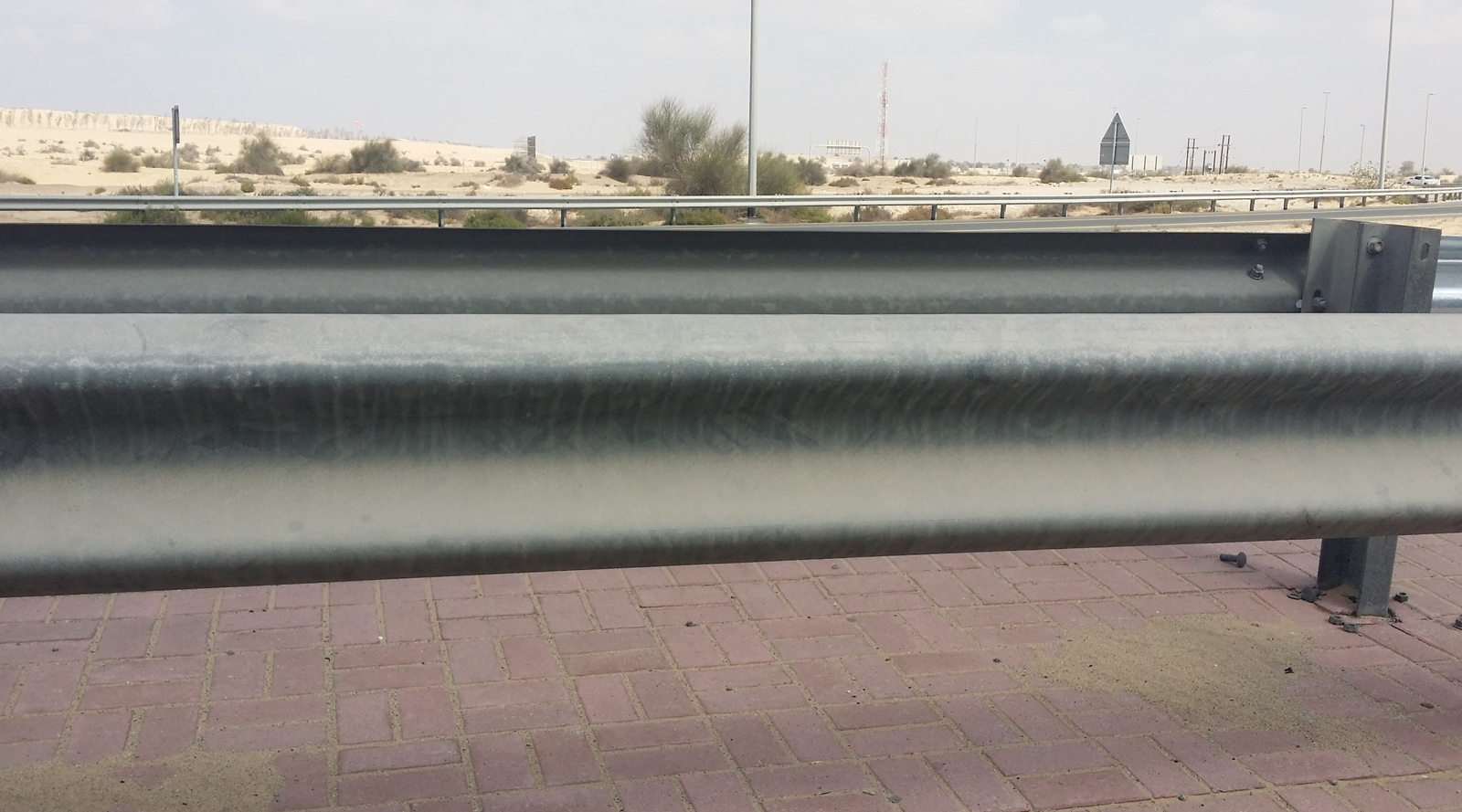

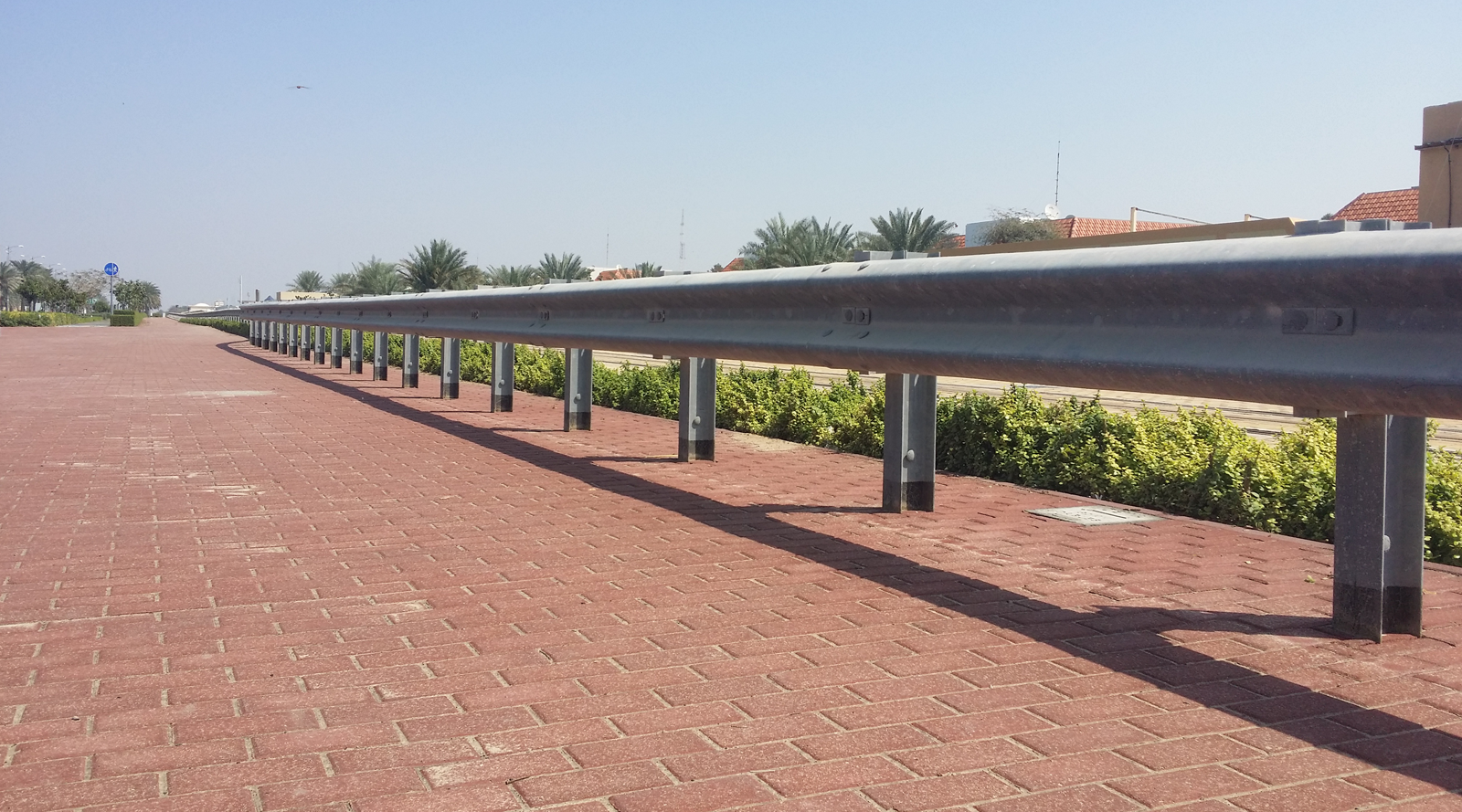

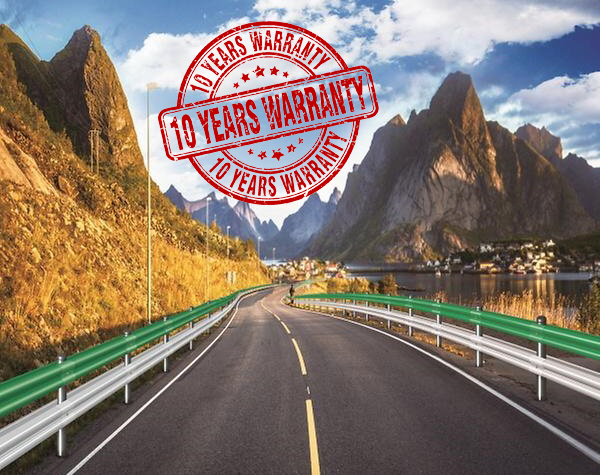

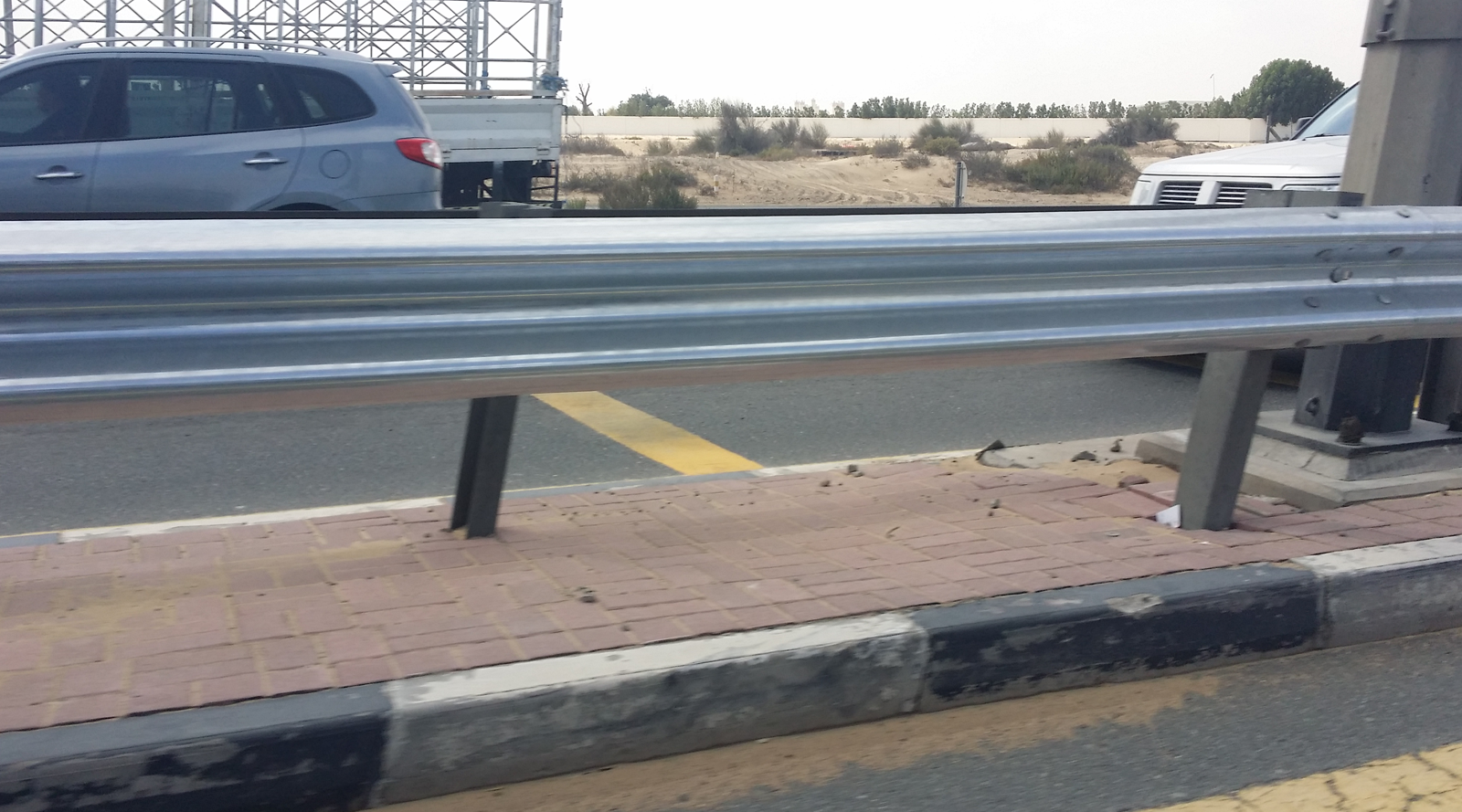

guard Rail

specifications :

1. Normal size:3200/3300/4000/4130/4300/4320×306/310/312/380×80/82/83/85×2.55/2.75/3/4mm. Available in different sizes

2. Profile: W-beam, Three-beam.

3. Applicable standards: JT/T281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M-180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL-RG620 (German) or any other International Standards

4. Base steel: Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).

5. The thickness of the steel: 2.55mm, 2.75mm, 3mm, 4mm, 6mm or according to consumers’ request.

6. Surface treatment: Hot dip galvanized or powder coated.

7. The thickness of galvanized (double sides):

550g/m2 (80µ)

610g/m2 (85µ)

1100 g/m2 (160µ)

1200 g/m2 (170µ)

as per your request.

8. Certificate: ISO9001, ISO14000, SGS, CE.

9. Features: Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.

10. Relevant parts required for guard rails: post, spacer (C, U and Sigma types etc) and fasteners.

11. Other special specification as per client's requirement or drawings

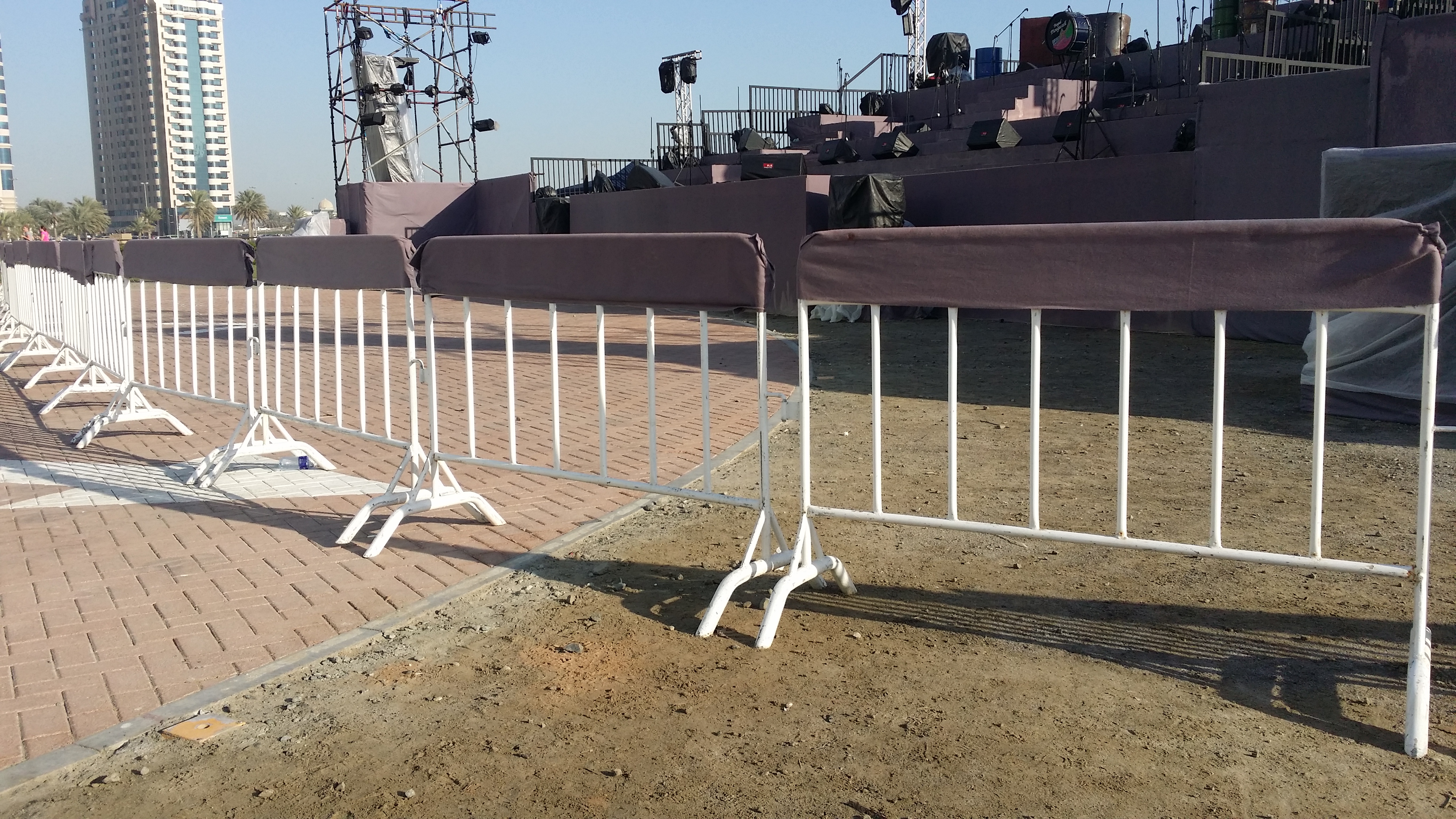

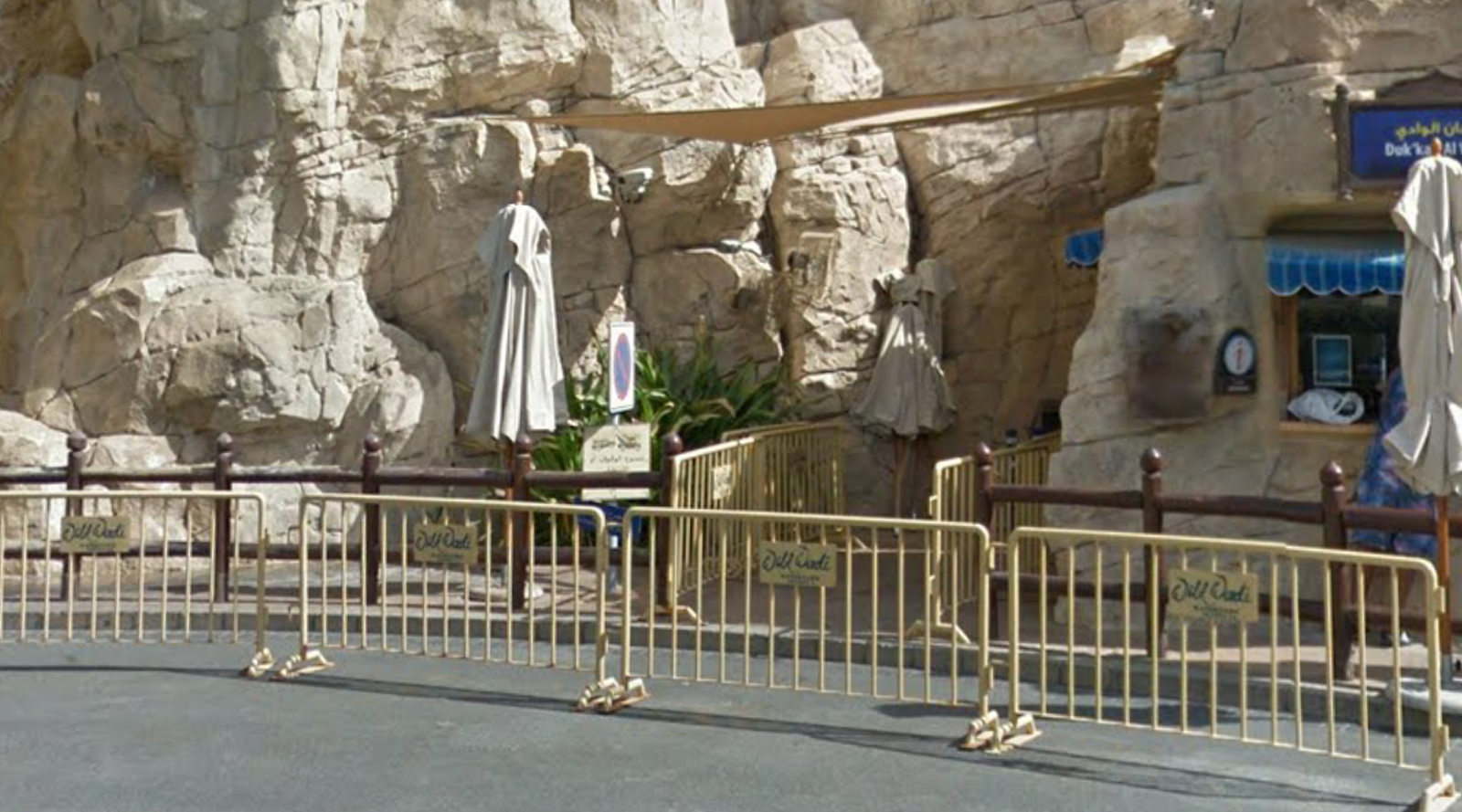

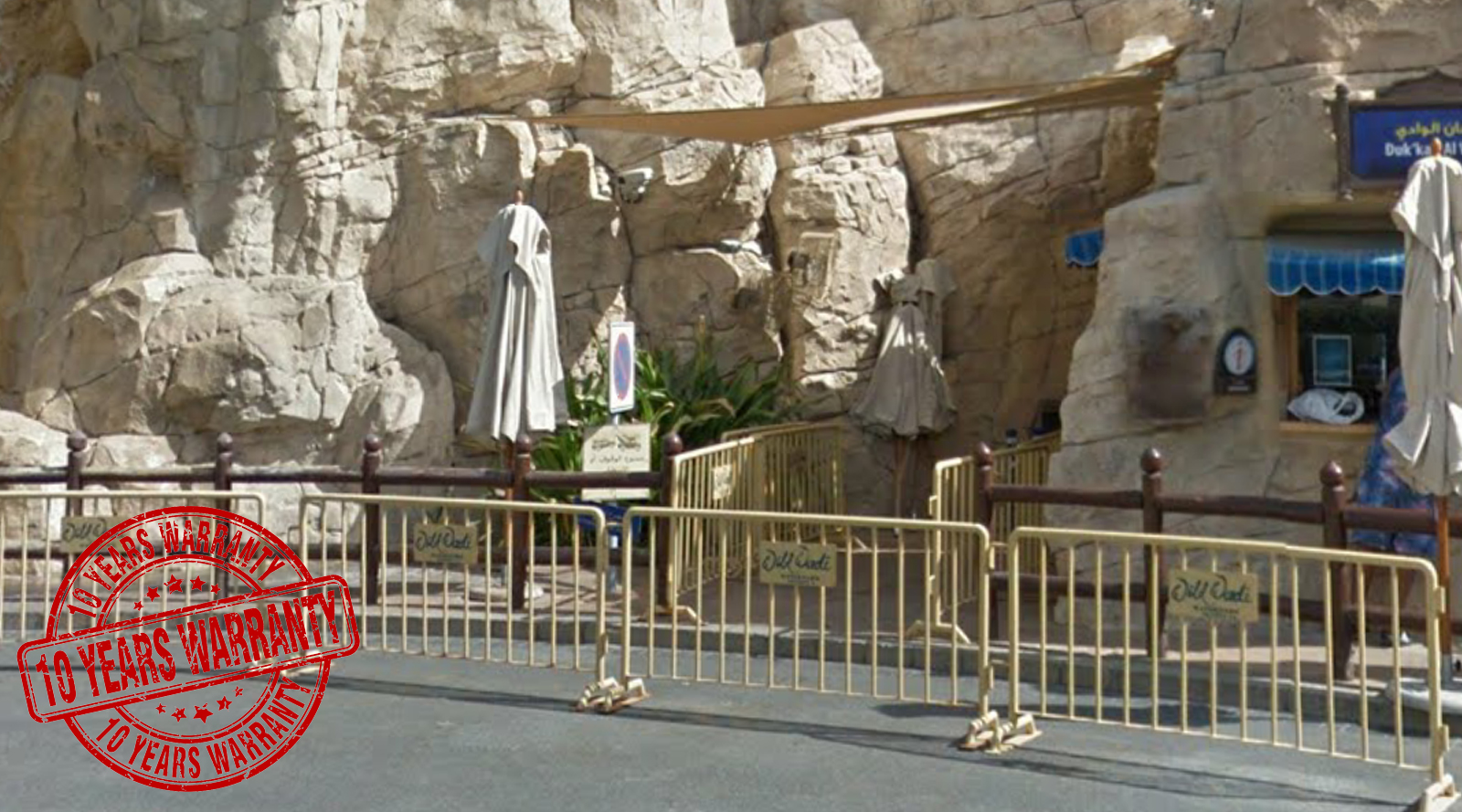

Crowd Control Barriers

specifications :

• Panel Size: 2200mm(L) x 1100mm(H)

• Frame: 25mm O.D.

• Infill Pickets: 20mm O.D. 200mm spacing

• Weight: 13kg's Panel Only / 18kg's Panel & 2 x Feet

• Finish: Hot Dipped Galvanized

• Feet: Flat Feet - removable

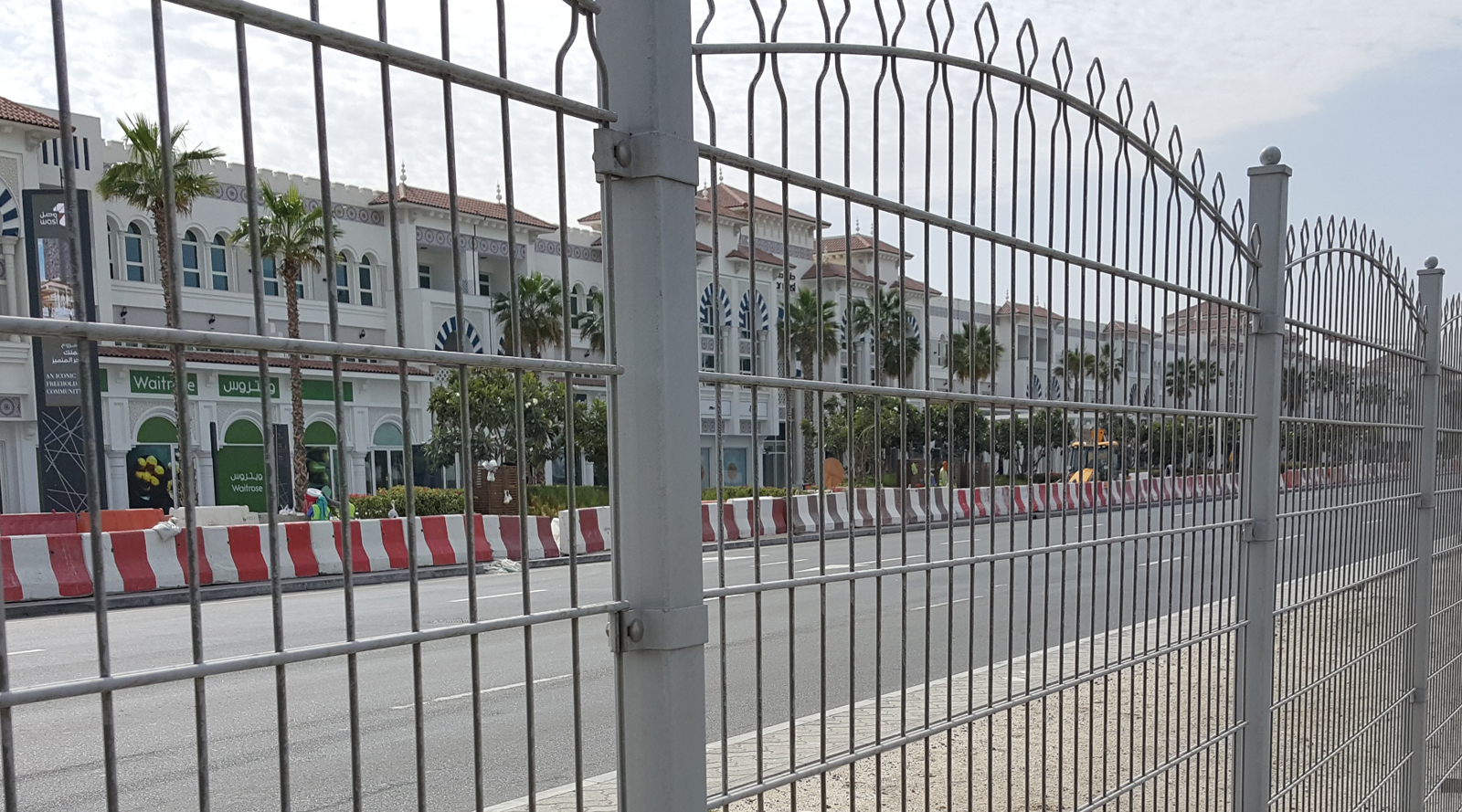

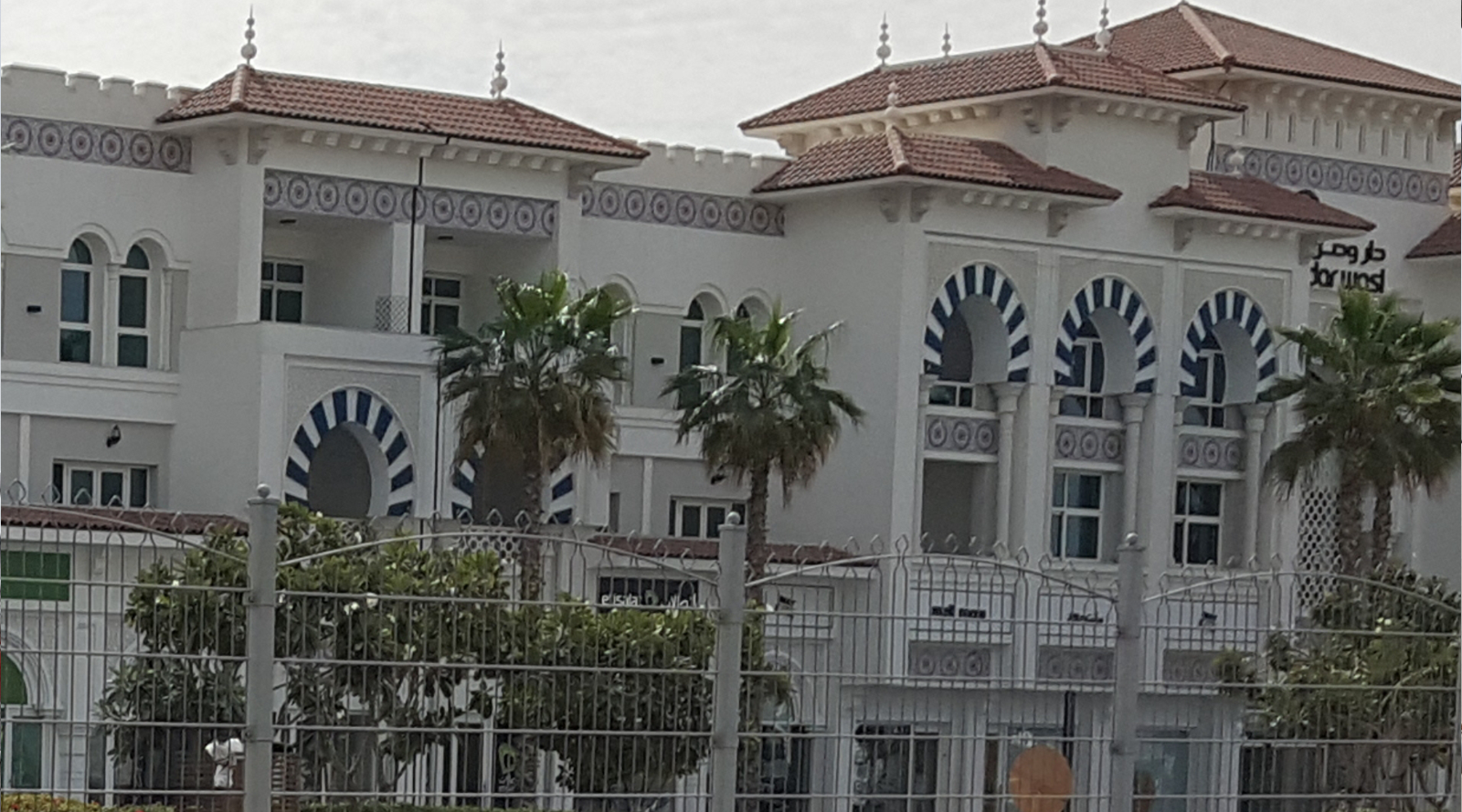

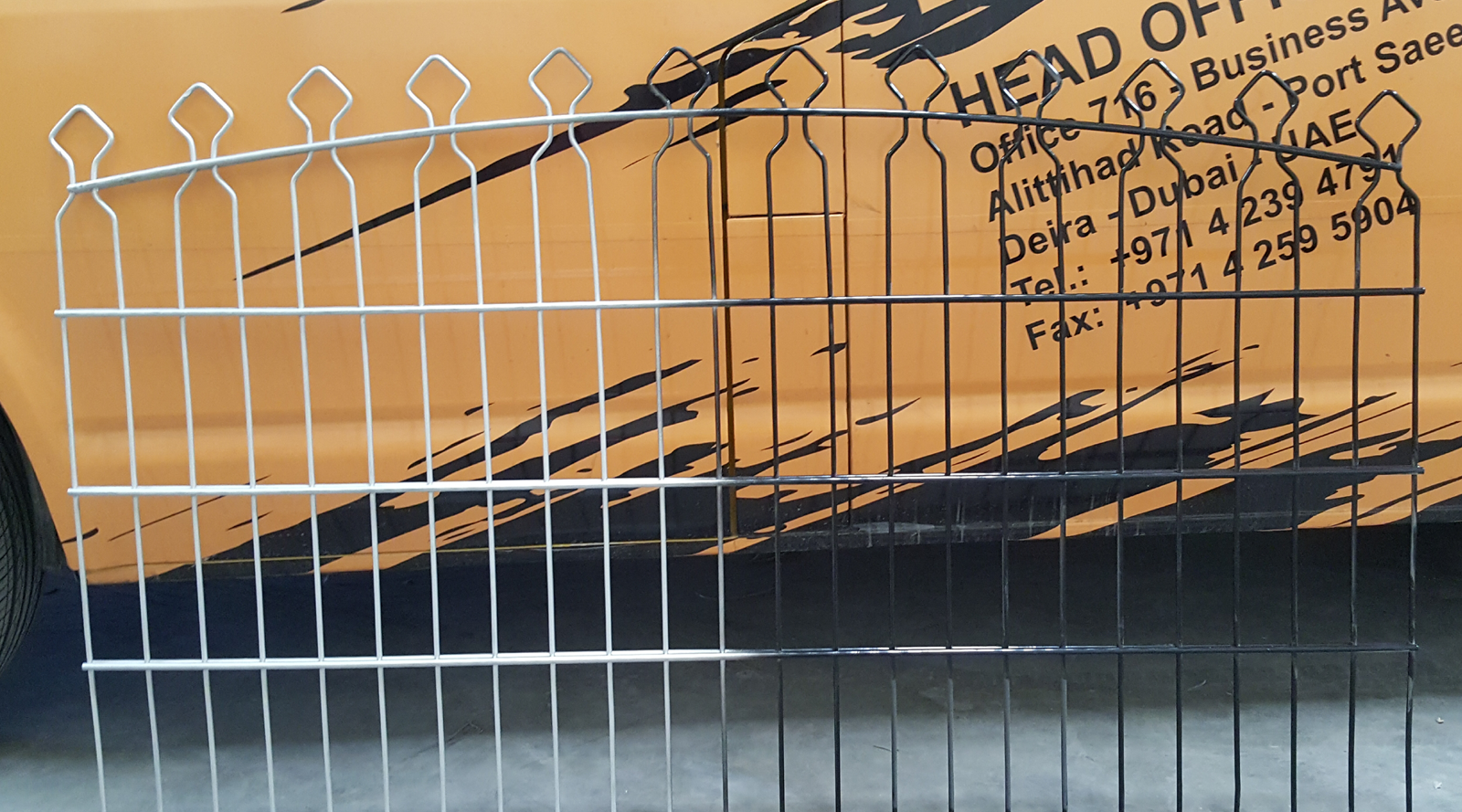

MeshDeco

specifications :

Panel MeshDeco:

• Standard Size:130 CM High or 188.0 CM or the customer can choose any sizes

• Mesh size:60x190mm

• Wire thickness: 8.0mmx2 for Horizontal 6.0mmx1 for vertical

• top special shape Steel

• Hot Dip Galvanized

• two faces powder coated ( Black, Green, Gray )

• Available in stainless steel rods

• 10 Years warranty

Post MeshDeco :

• Size:60x60x2.0mm

• Height 129cm Or 185cm Or any as request

• Base and sets of screws and top ball

• Aluminum

• Two faces Powder coated ( Black, Green, Gray )

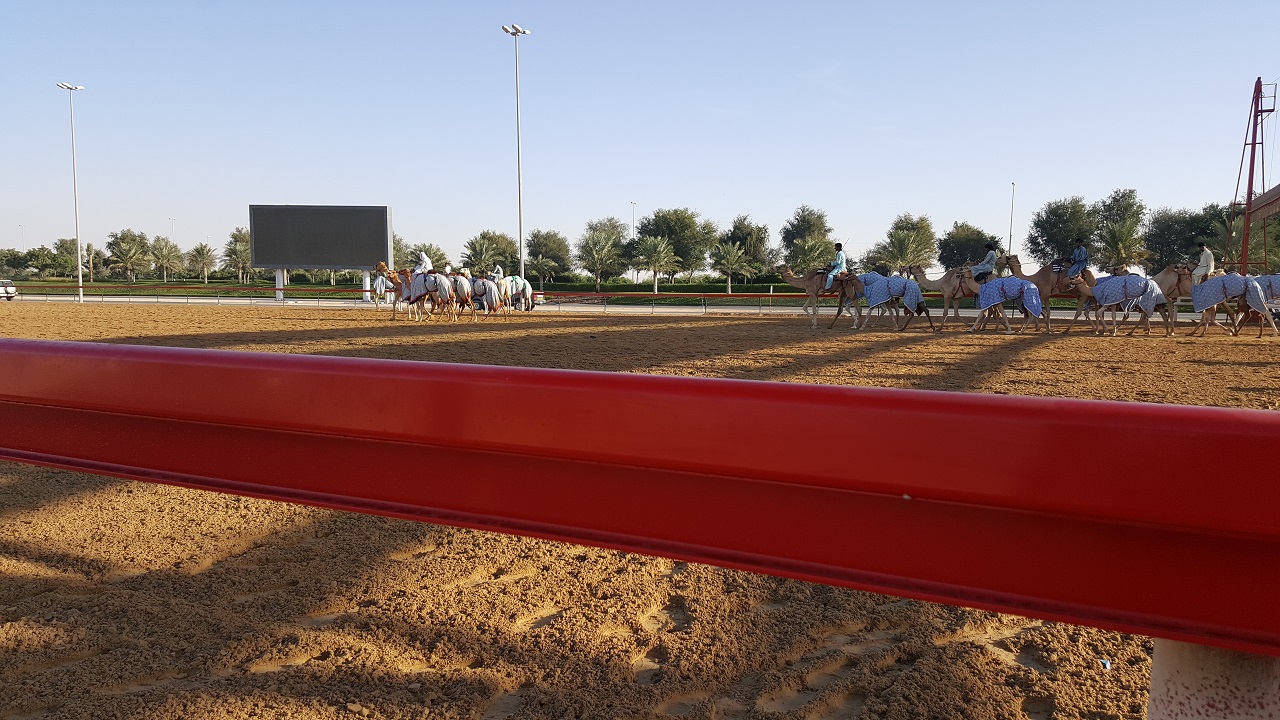

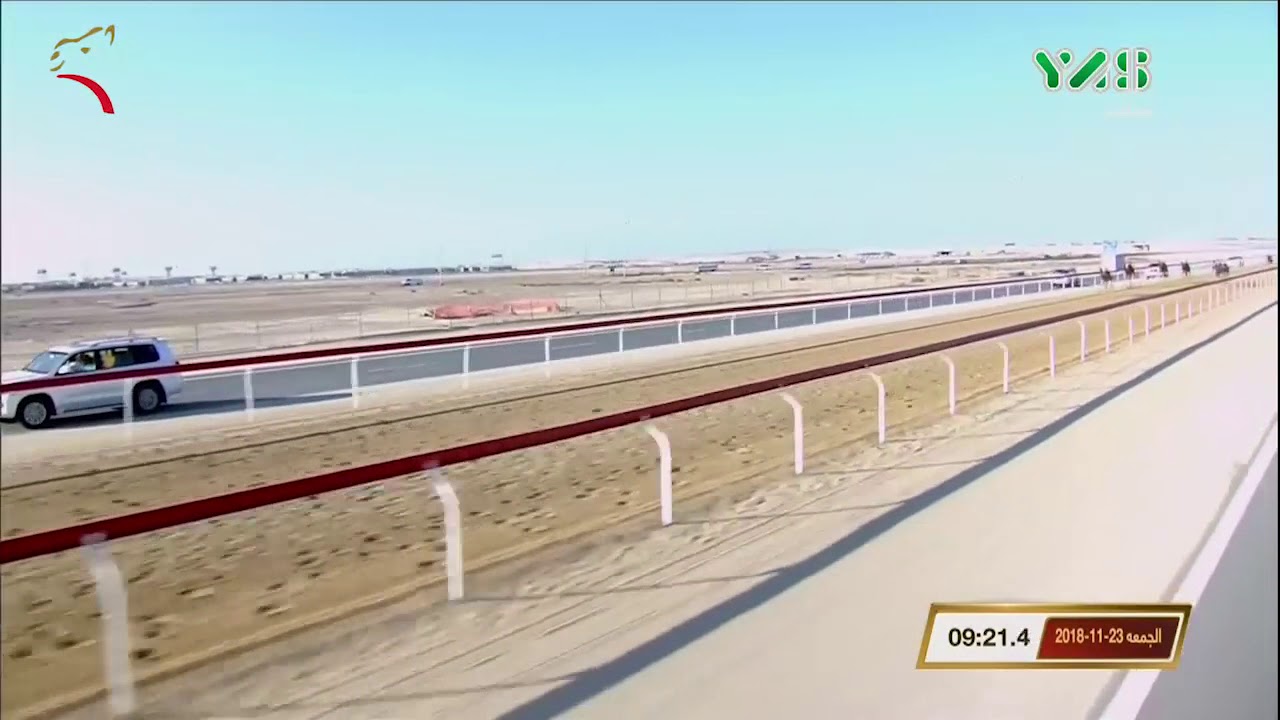

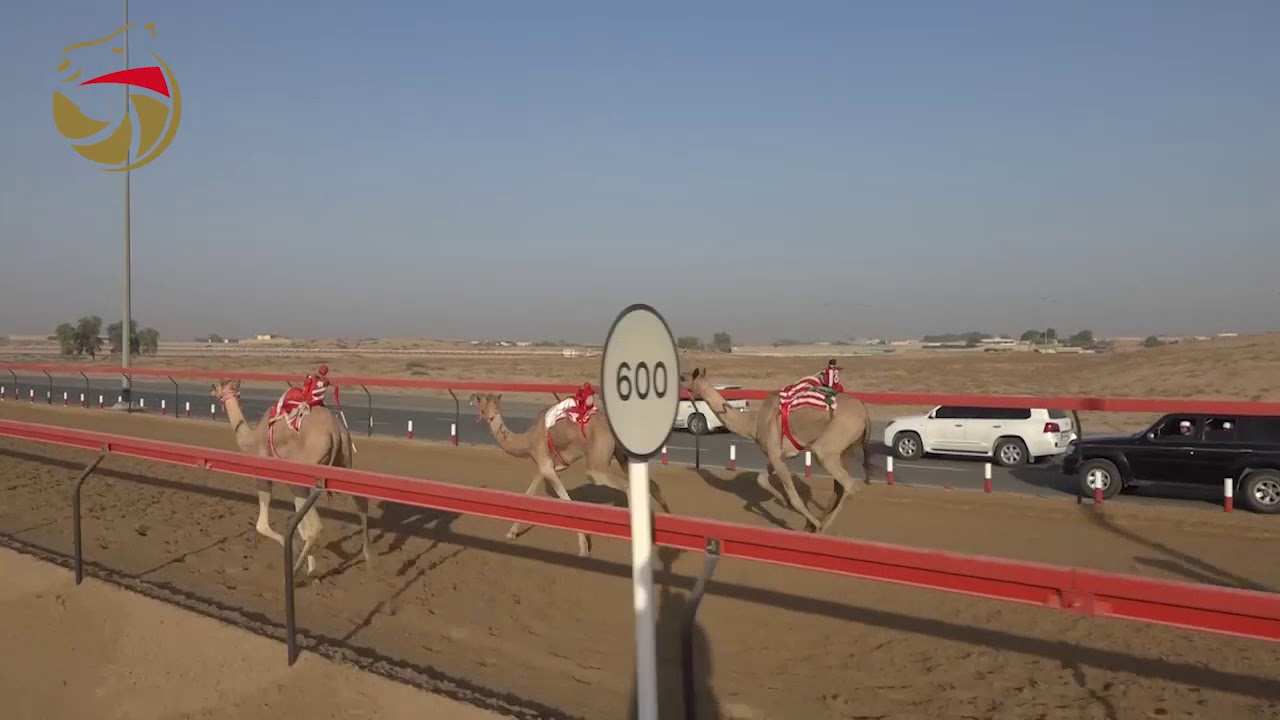

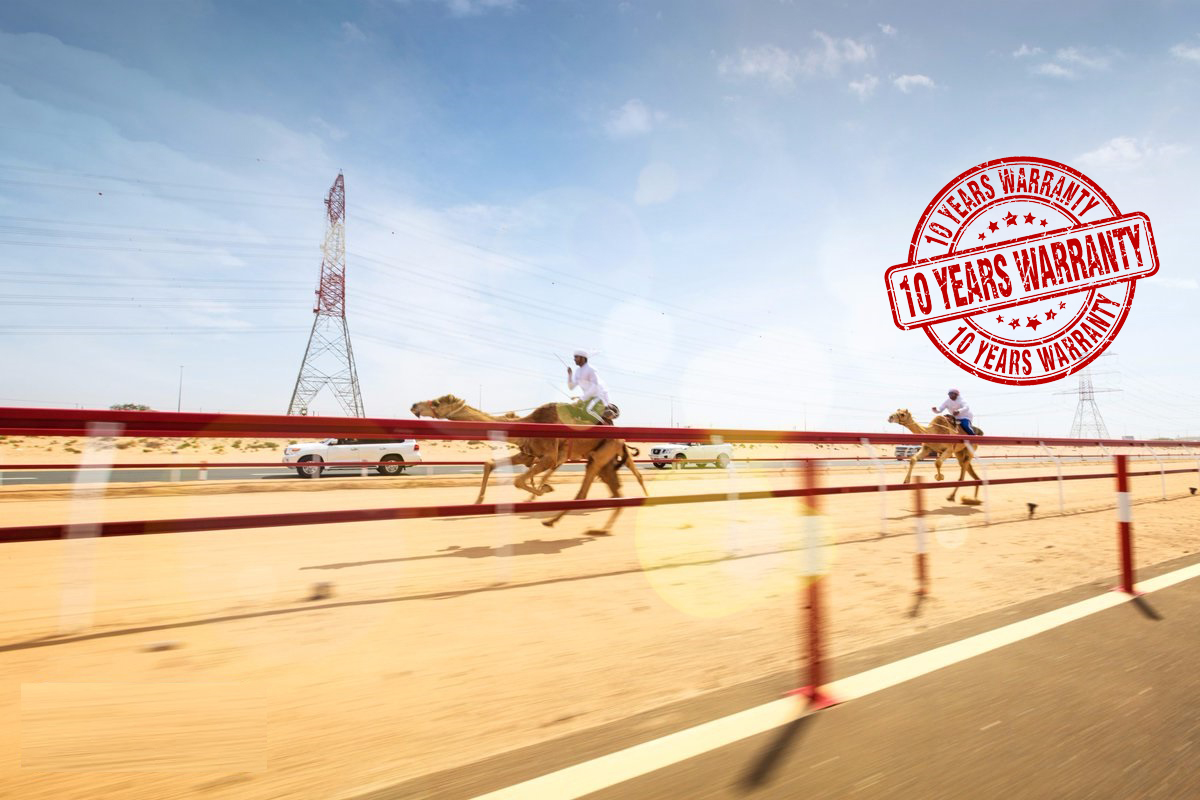

Camel beam

• Alumimum Guard Railing 6mm Red color

• Tow Faces Powder Coated

• 10 Years warranty

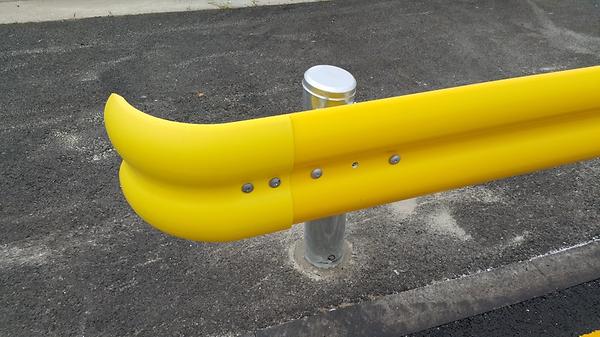

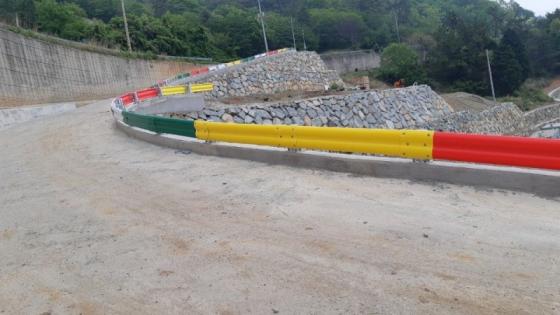

P.V.C GUARDRAIL

• Superior Safety with Special Material of PVC Resin

• Superior Shock Absorption with Honey Comb Structure

• Easy Distinguishment by Self Illumination at nighttime driving

• No Color Change and Corrosion by U.V Coating

• No Contamination by Photo catalyst

• Easy Construction due to much lighter than Steel Guardrail

• Eco-Friendly due to Recycling

• Possibility of Color Change matching with Road Features

• Possibility of Shape Change as desired

• Cleaned naturally by Rain
